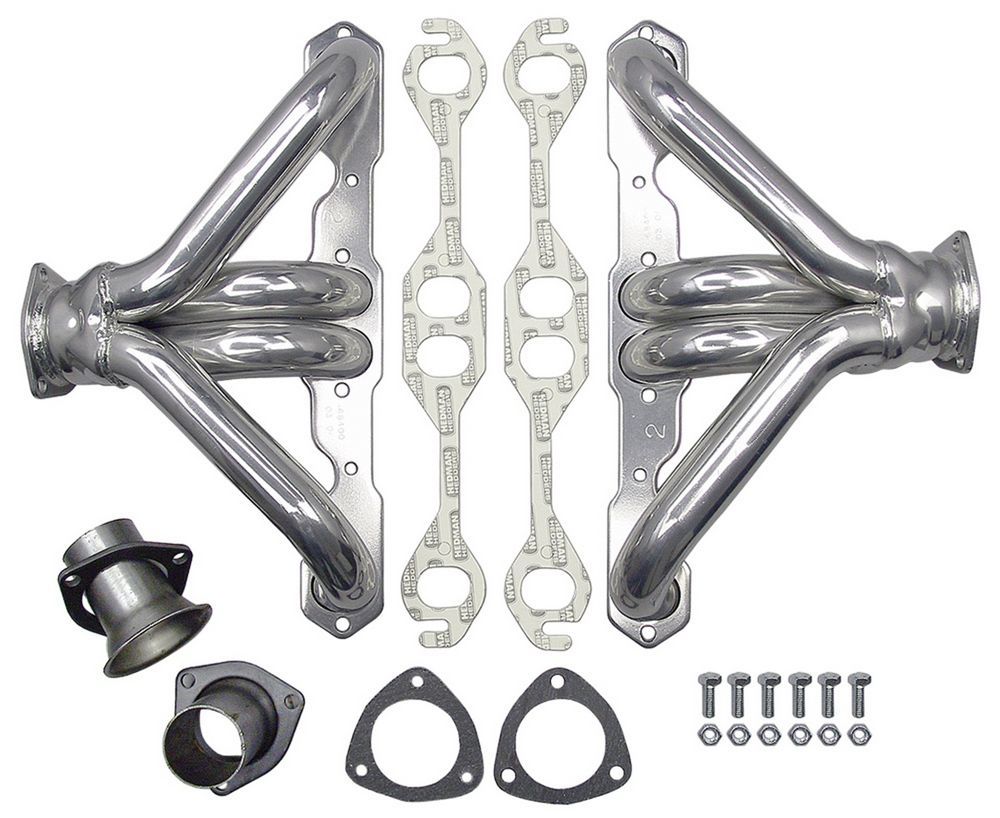

Block Hugger Headers
Hedman : HED68406
Artikelnr: HED68406
- Automatic Transmission - Column: Yes
- Automatic Transmission - Floor: Yes
- Bolts/Studs Included: Yes
- Catalytic Converter(s) Included: No
- Collector Attachment: 2-1/2 in.
- Collector Bolts Included: Yes
- Collector Diameter: 2-1/2 in.
- Collector Size: 2-1/2 in.
- Collector Style: 3-Bolt Gasket Style Flange

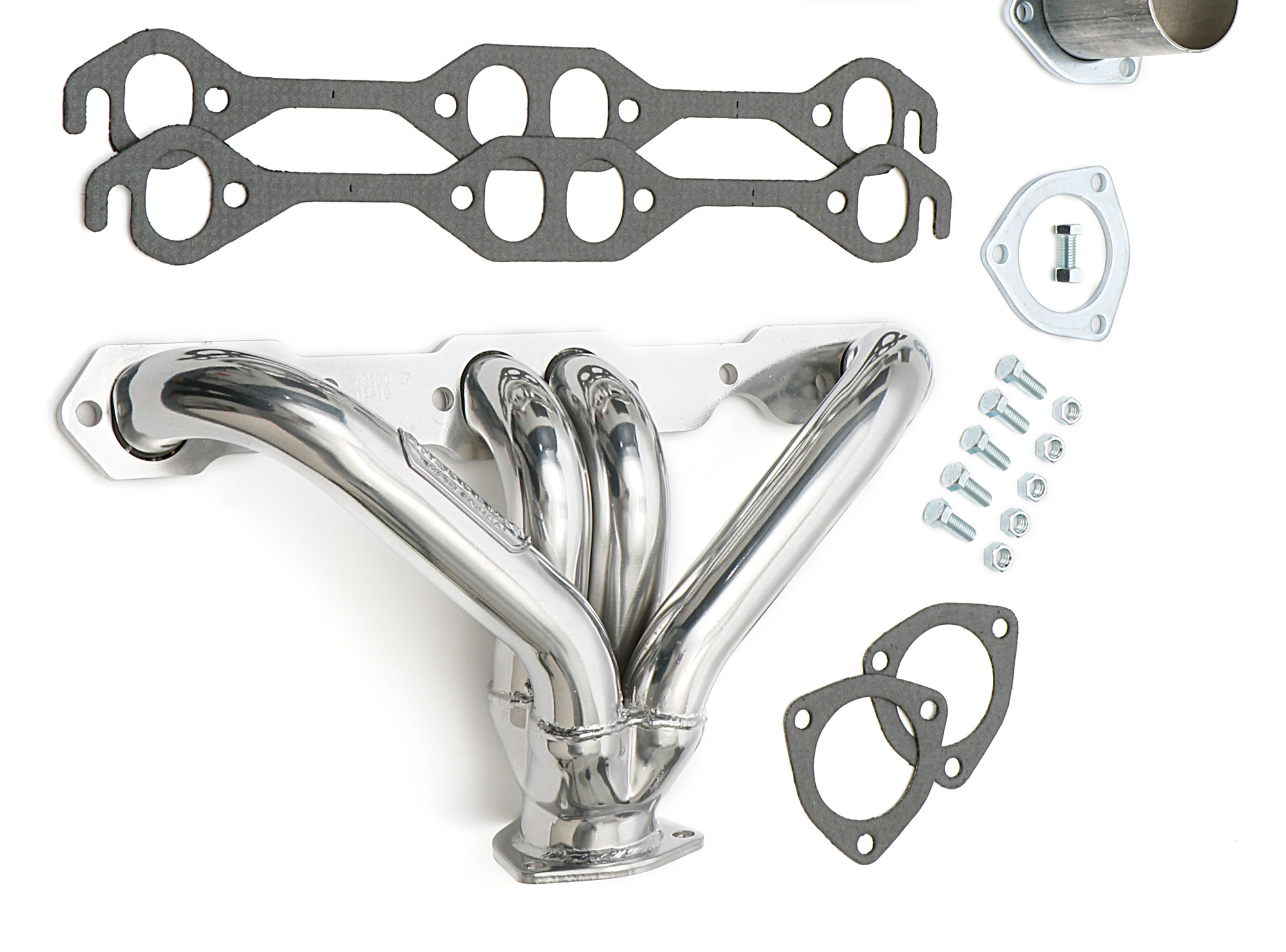

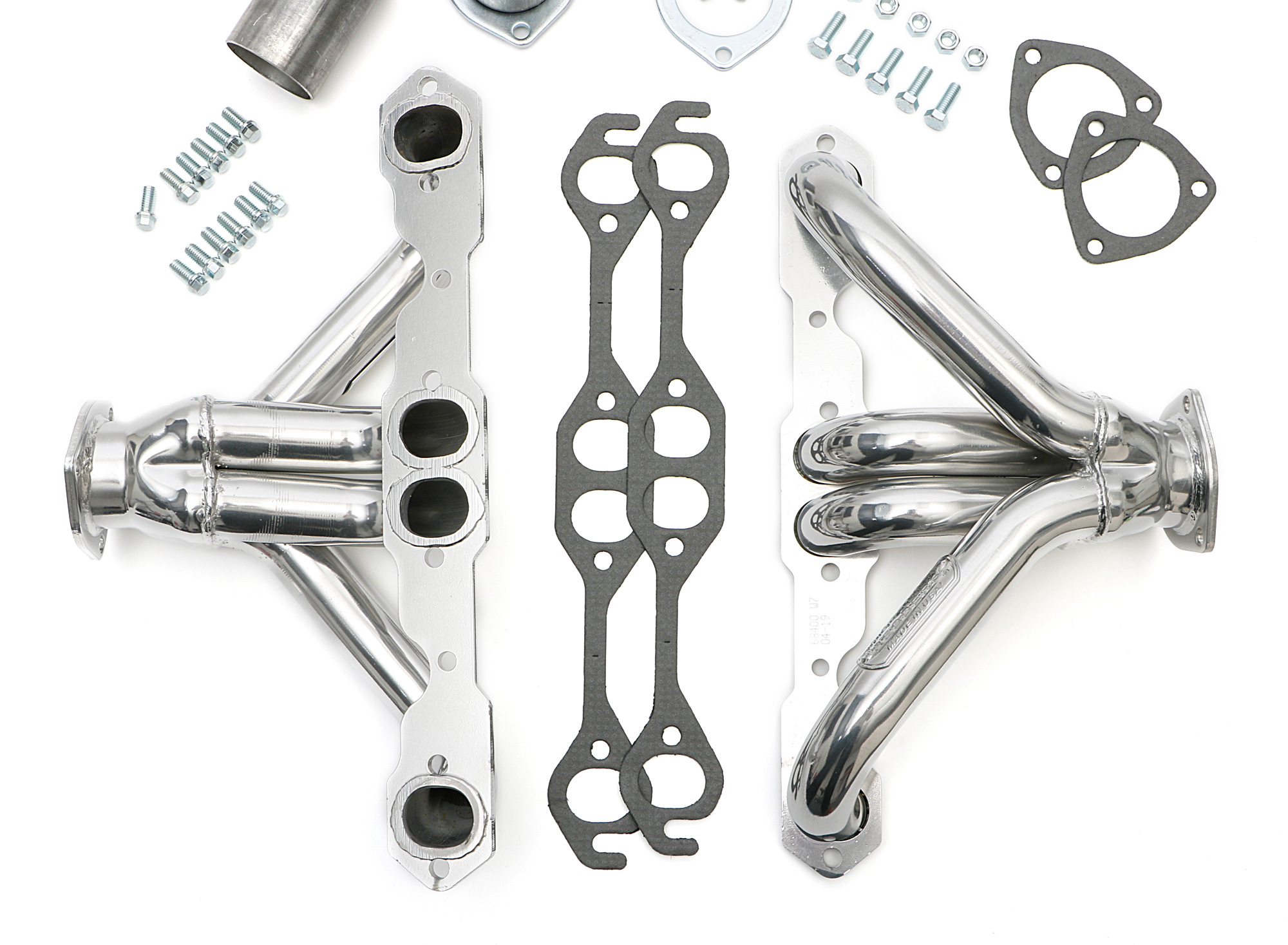

- Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
- Crossover Pipe Included: No
- Cylinder Head: Stock Profile Heads
- Cylinder Head Port Shape: Oval
- E.O. #: No
- Emissions Notes: Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only.
- Engine: Chevy SB 283-400
- Exhaust System Dia: 2-1/2 in.
- Finish: HTC Polished Silver Ceramic-Metallic
- Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
- Flange Style: Standard
- Flange Thickness: 0.375 in.
- Gasket or Seal Included: Yes
- Header Construction: MILD STEEL- Standard-Duty
- Header Fasteners Included: Yes
- Header Finish: HTC Polished Silver Ceramic-Metallic
- Header Material: Mild Steel
- Header Port Shape: Oval Port
- Header Style: Block Huggers- Street Rod

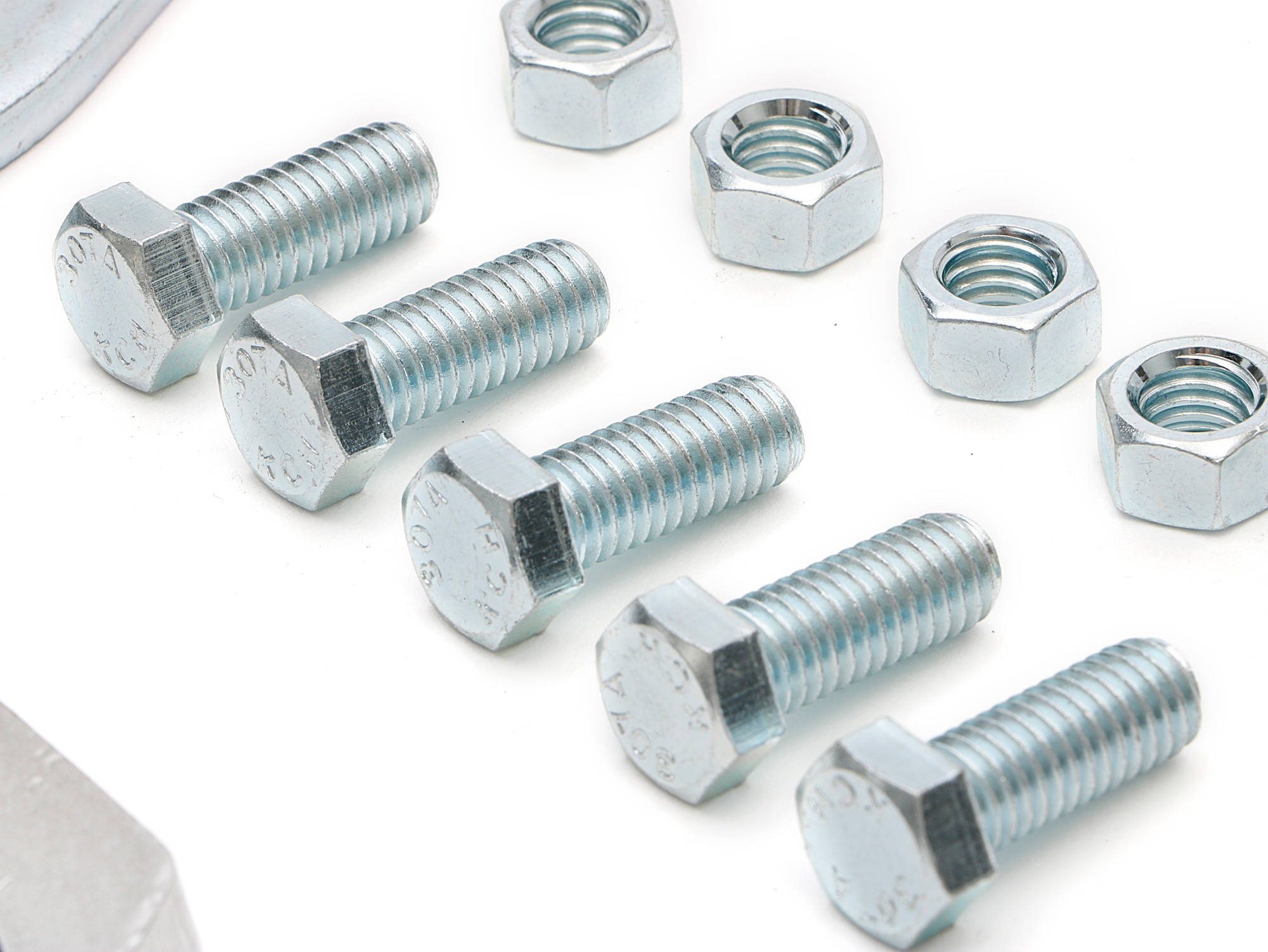

- Installation Hardware Included: Yes
- Manual Transmission - Column: Yes
- Manual Transmission - Floor: Yes
- Material: Mild Steel
- Motor Mounts Included: No
- Mounting Hardware Included: Yes
- Notes: Street Rod Universal Shorty Chev. 283-400 Angle Plug Heads

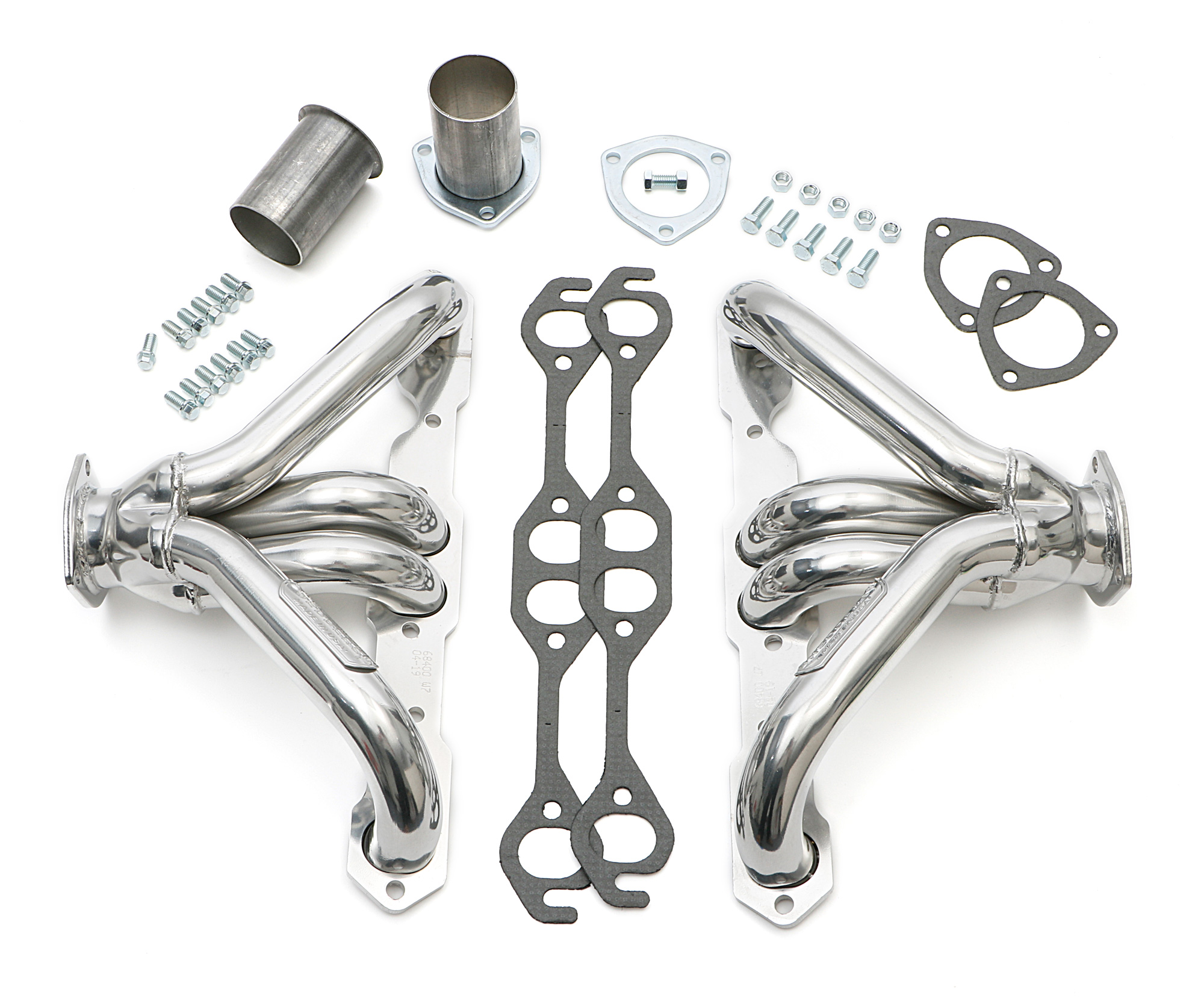

- Package Contents: Headers, reducers (exhaust adapters), gaskets, mounting hardware
- Port Shape: Oval
- Primary Tube Diameter (in): 1.625 in.
- Primary Tube Gauge: 16g
- Quantity: Sold as a pair.
- Reducer Outlet Size: 2-1/2 in.
- Reducers Included: Yes
- Replacement Gasket: 27520
- Replacement Head Flange Gasket: 27520
- Title: HEDMAN HEDDERS BLOCK HUGGER HEADERS; CHEVY SB 283-400; 1-5/8 IN. TUBES; HTC CERAMIC COATED
- Transmission Notes: Modification to shifter linkage may be required.
- Tube Design: Standard
- Tube Diameter: 1-5/8 in.
- Tube Length: Short Tubes
- Tube Material Thickness: 16g
- Tube Size: 1-5/8 in.
- Tube Style: Block Huggers
- Tuned: No
- Variations: 68400
- Weld-Up: No
- with A.I.R. System: No
- with EGR: No
- Y-Pipe Included: No
