BluePrint Engines

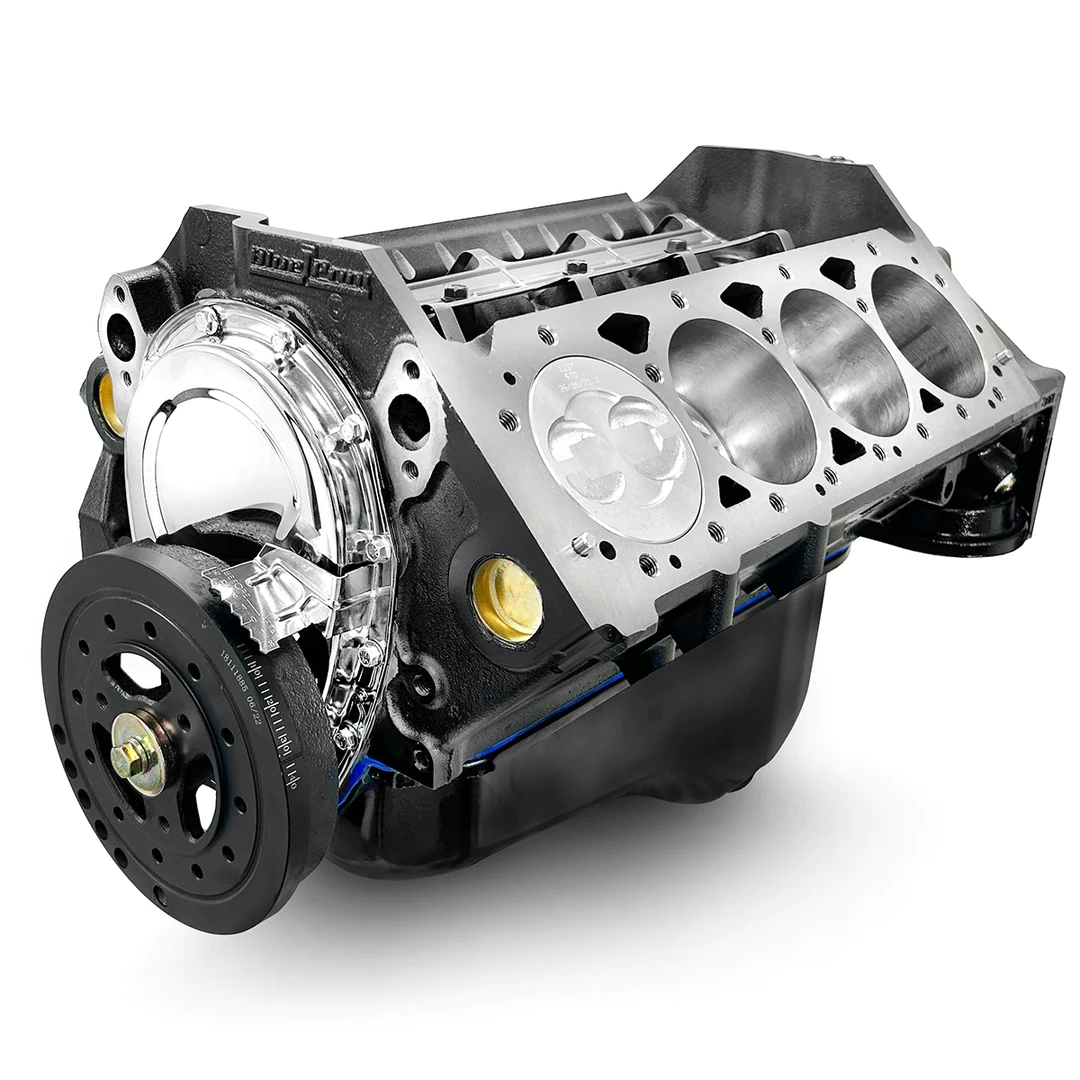

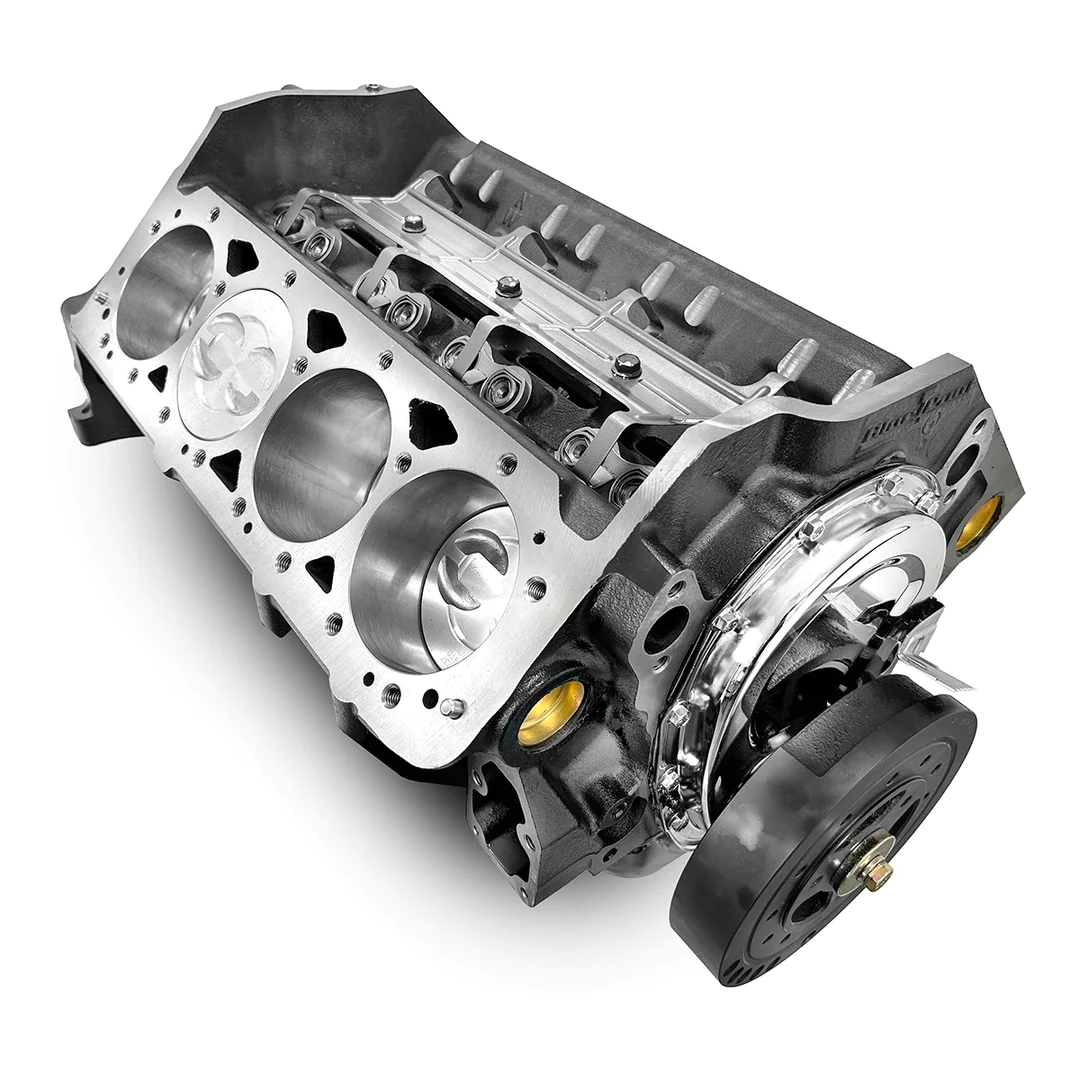

Chevy SB 383ci Short Block

BluePrint Engines : BP38318SP

Artikelnr: BPEBP38318SP
Chevrolet smallblock 383cid Stroker Shortblock Plus från BluePrint Engines. Snabbfakta: - Gjuten vevaxel NY - Kolvar: - Hypereutektiska Motorblock: - Cheva 350 4-Bultat - Borr 4,00" - Oljestickan på passagerarsidan Roterande delar: - Vevaxel: Gjuten - Slaglängd: 3.750" - Kolvar: 12cc Dished hypereutektiska - Nya vevstakar med 150k PSI bultar - Hastings Moly ringar - Melling HV oljepump - Hydraulisk rullkam. (med 1,6 vippor) Lyft: 0,544" in / 0,555" avg. Duration: 230° in / 236° avgas @050 110° lobe - Heavy duty Single roller kamdrivning - Svängningsdämpare 8" Noteringar: - Kompression 10.0:1 vid användning av topplock med 64cc förbränningsrum och .041" packning - Med 4,00" Borr blir det 377ci med 3,75" slag - Hk & Vrid: 436 HP / 443 FT LBS med 750cdm förgasare och H8002K topplock
  • Air Cleaner Included: No
  • Block Description: New BluePrint block, 1 piece rear main seal, 4 bolt main
  • Cam: Roller - Lift with 1.6 rockers, .528 intake/.536 exhaust, 221 intake/226 exhaust duration @.050, 110 lobe separation angle
  • Carburetor/ Fuel Injection Included: No
  • Compression Ratio: 10:1 w/ 64cc head and .041" head gasket.
  • Country of Origin: USA
  • Crankshaft Vendor: BluePrint
  • Cylinder Head Vendor: N/A
  • Cylinder Heads: N/A
  • Cylinder Heads Included: No
  • Description: Shortblock plus camshaft, oil pan and timing components installed
  • Dimensions: 30"Wx27"Lx38"H
  • Distributor Included: No
  • Distributor Vendor: N/A
  • Engine Balance: External
  • Firing Order: 1,8,4,3,6,5,7,2
  • Flexplate/ Flywheel Included: No
  • Fuel Delivery Type: N/A
  • Fuel Delivery Vendor: N/A
  • Harmonic Balancer Included: Yes
  • HP: 430
  • Intake Manifold Included: No
  • Intake Manifold Type: N/A
  • Intake Manifold Vendor: N/A
  • Oil Pan Included: Yes
  • Pistons: Hypereutectic
  • Quantity: EA
  • Rear Main Seal Style: 1 pc
  • Recommended Flywheel / Flexplate: Late 350 weighted
  • Recommended Harmonic Balancer: BPP400 - 400 ci weighed, 8" diameter
  • Recommended Octane Fuel: N/A
  • Recommended Spark Plug Gap: N/A
  • Recommended Spark Plugs: N/A
  • Recommended Stall Converter: N/A
  • Rotating Assembly: Cast iron crank - 3.75" stroke, bore 4.00"
  • Shipping Weight: 350
  • Spark Plug Wires Included: No
  • Spark Plugs Included: No
  • Timing Cover Included: Yes
  • Timing Requirements: Initial timing - 10-16° and Total timing 32-34°
  • TQ: 450
  • Valve Covers Included: No
  • Water Pump Included: No
  • Fabrikat: Chevrolet
  • Fabrikat: GM
