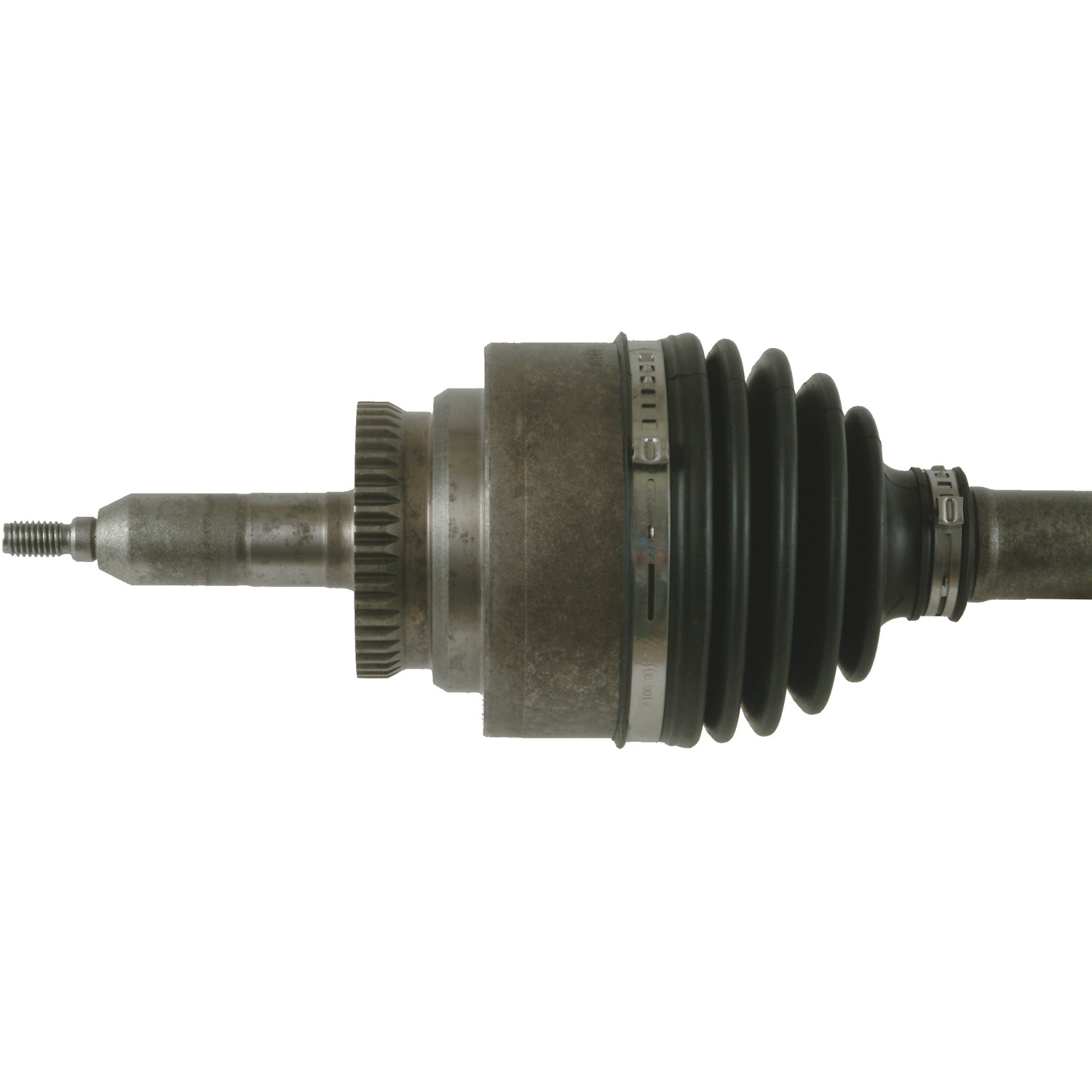

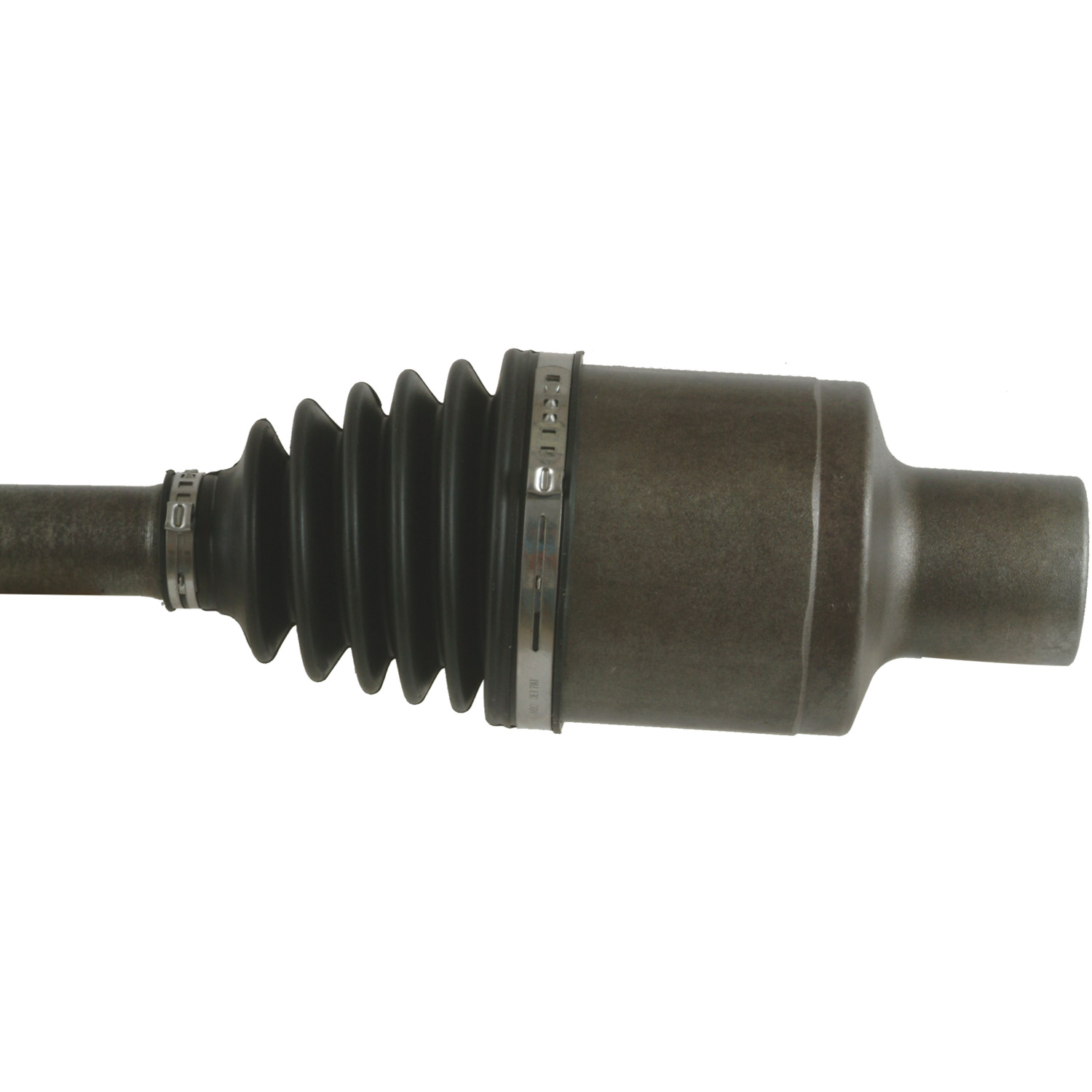

Drivaxel
Cardone : 602192
Artikelnr: cdo602192
- ABS Ring Included: No
- Axle Nut Locking Type: Nylon Lock
- Box Part Number: CV3
- Canada VIO Count: 286102
- Cardone Pop Code: W
- E-Waste: No
- FAQs: Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly.
- FAQs: Are the CV Drive Axle shafts balanced at the factory?
- FAQs: Can I let the CV Drive Axles hang while I am working on the car?
- FAQs: I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this?
- FAQs: I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why?
- FAQs: I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do?
- FAQs: Is it OK to use an impact hammer to install the retaining nut?
- FAQs: Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint.
- FAQs: Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications.
- FAQs: NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one.
- FAQs: Shafts are inspected 100% for run out to prevent vibrations. Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly.
- FAQs: The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it?
- FAQs: The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem.
- FAQs: The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced.
- FAQs: The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up.
- FAQs: The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
- FAQs: The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it?
- FAQs: The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time.
- FAQs: The wheels wobble when I make a turn. What's the problem?
- FAQs: When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise?
- FAQs: When I replace the CV drive axles, should I reuse the old seals?
- FAQs: When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong?
- FAQs: When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking.
- FAQs: When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on.
- Features and Benefits: As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Features and Benefits: Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.
- Features and Benefits: CV Drive Axle is measured after assembly to ensure proper fit.
- Features and Benefits: CV Drive Axle shafts are inspected for run out to prevent vibration.
- Features and Benefits: High-quality grease withstands high-temperature and pressure extremes, which extends joint life.
- Features and Benefits: High-tech grinding machines maintain the original design of the outer housing, race and cage to guarantee reliable performance.
- Features and Benefits: Neoprene boots ensure excellent environmental stress resistance, which eliminates cracking - a leading cause of boot failure.
- Features and Benefits: Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
- Features and Benefits: Splines are chased to ensure proper fit of the axle into the mating hub and transmission, which eliminates installation hassles.
- Features and Benefits: Threads are chased to ensure proper fit of the new retaining nut supplied with each CV Drive axle.
- Input Shaft Connection Style: Spline
- Output Shaft Connection Style: Spline
- Package Contents: Complete Axle, Instruction Sheet
- Product Condition: Remanufactured
- Product Line Marketing Stmt: After 50 years of leadership in the automotive aftermarket, we are excited to start the next chapter of CARDONE's dynamic history. We are positioned to support the next wave of vehicle technology and ready to innovate new solutions that bring value to our customers - all while upholding sustainable business practices and high ethical principles. We build it better.
- Qty To Pallet: 90
- Spindle Nut Included: Yes
- Spindle Nut Thread Size: M10X1.5
- 7L1Z3B436A: Ford
- AL1Z3A428B: Ford
- AL1Z3A428B: Lincoln
- FOR7L1Z3B436A: Ford
