Höjningssats
Rough Country : 10170
Artikelnr: rcs10170
Clean, Non-torsion Drop Design Laser-cut crossmember for precise fit Maintains factory ride quality Maintains the stock track width Unmatched ground clearance Axles maintain factory position and angle No drilling or modifying of the differential No drivetrain modifications required Includes our latest application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

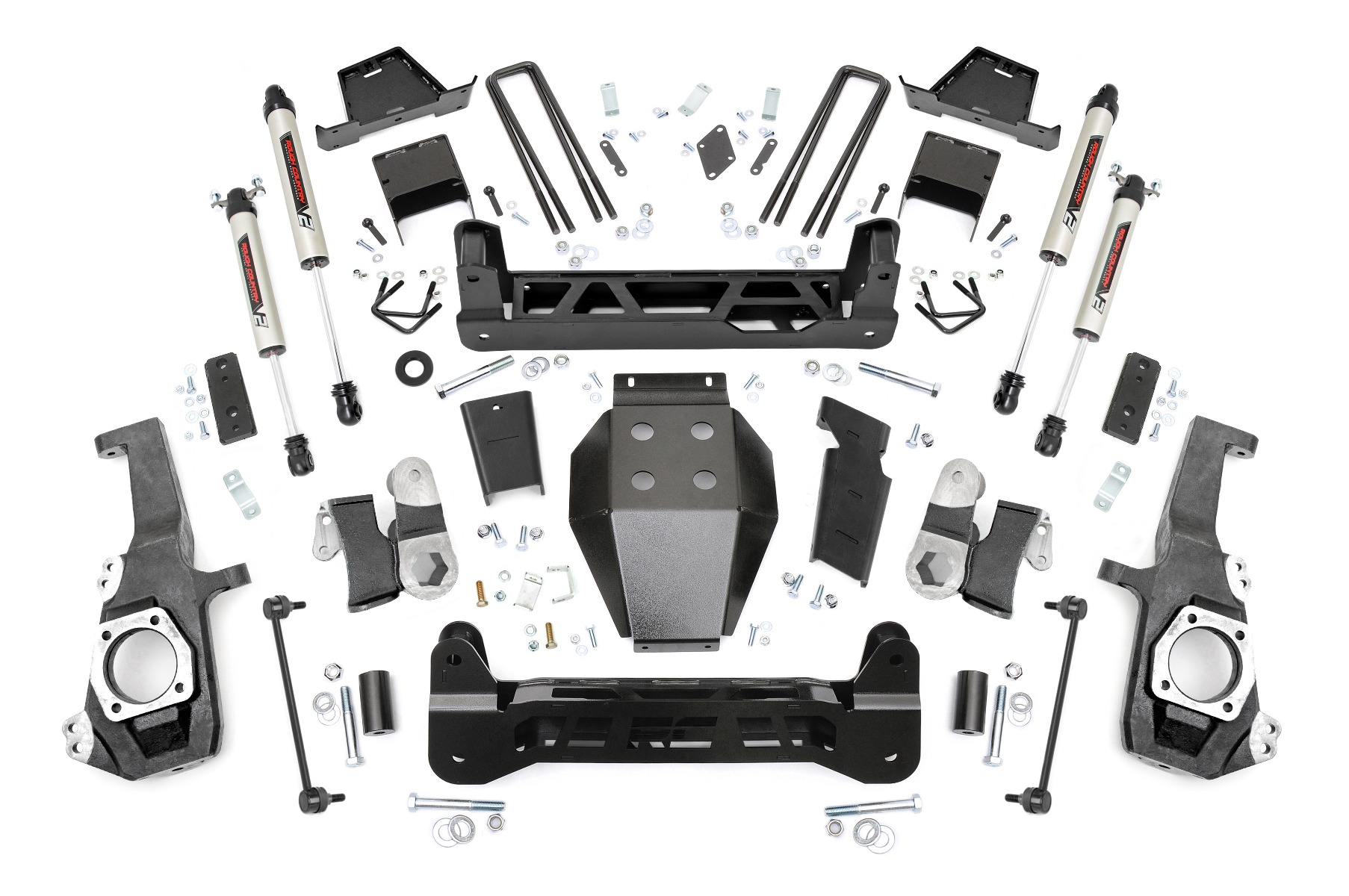

- Front Components: Lifted knuckles, Front crossmember, Rear crossmember, Differential drop brackets, Differential skid plate, Non-torsion bar drop brackets, Sway-bar links, Sway-bar brackets, Upper shock brackets, Brake line relocation bracket, Hardware
- Install Time: 8 - 10 hours
- Rear Components: Anti-wrap lift blocks, U-bolts, Bump-stop brackets, Brake line brackets, E-brake line bracket, Hardware
- Tire, Wheel, and Offset Info: 37x12.50R20:20x9:8x180:-12:-; 37x12.50R20:20x9:8x180:+0:-; 37x12.50R20:20x9:8x180:+1:-; 37x12.50R20:20x10:8x180:-25:-; 37x12.50R20:20x10:8x180:-24:-; 37x12.50R20:20x10:8x180:-19:-; 37x12.50R20:20x10:8x180:-18:-; 37x12.50R20:20x12:8x180:-44:Trimming Required; 37x12.50R22:22x10:8x180:-25:-; 37x12.50R22:22x10:8x180:-24:-; 37x12.50R22:22x10:8x180:-19:-; 37x12.50R22:22x10:8x180:-18:-; 37x12.50R22:22x12:8x180:-44:Trimming Required; Does NOT fit factory wheels
- Title: 7 Inch Lift Kit - NTD - V2 - Chevy/GMC 2500HD (20-23)
- Höjd tum: 7 tum
