Insug
Aeroflow : AF6050-5000
Artikelnr: AFW6050-5000

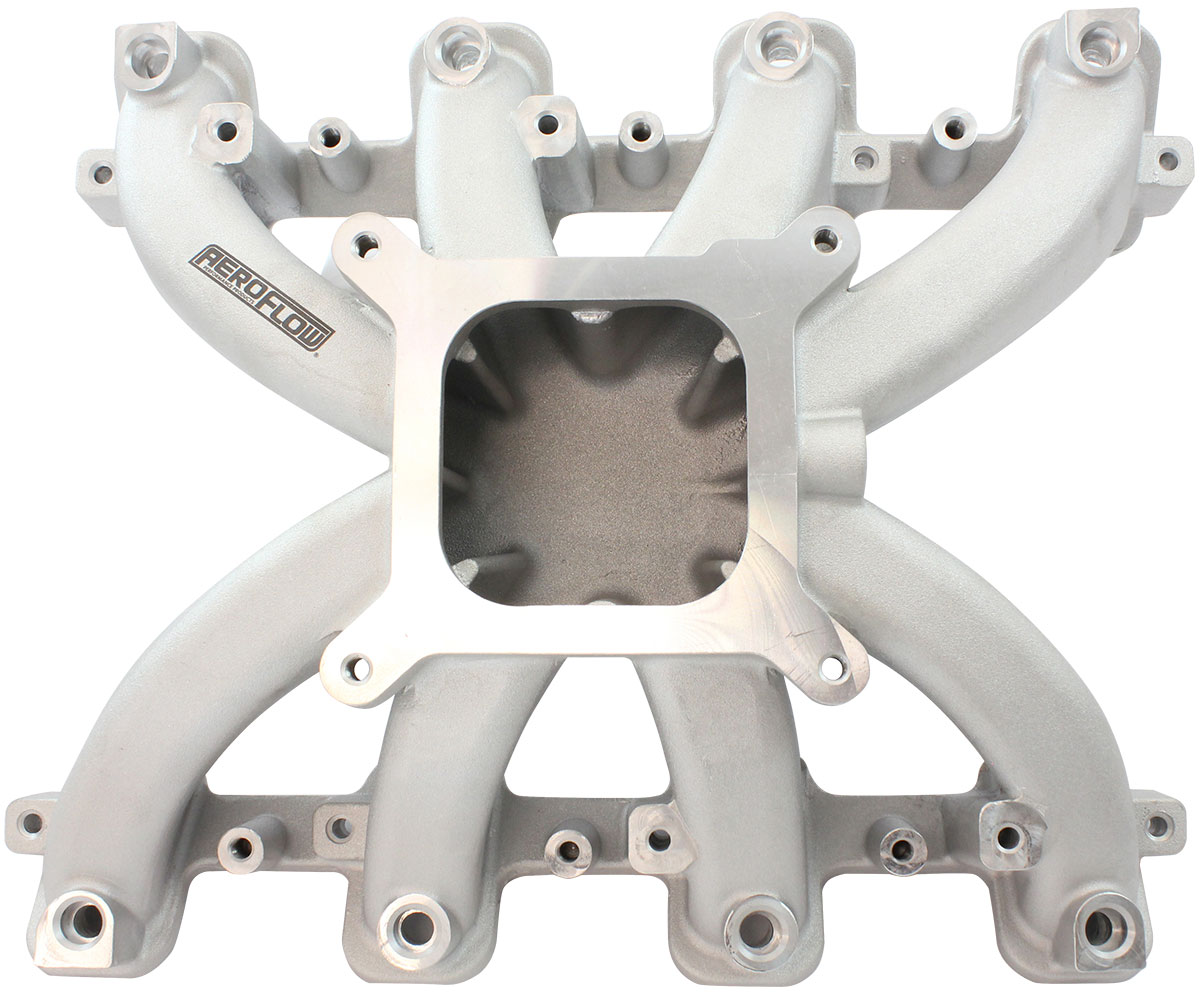

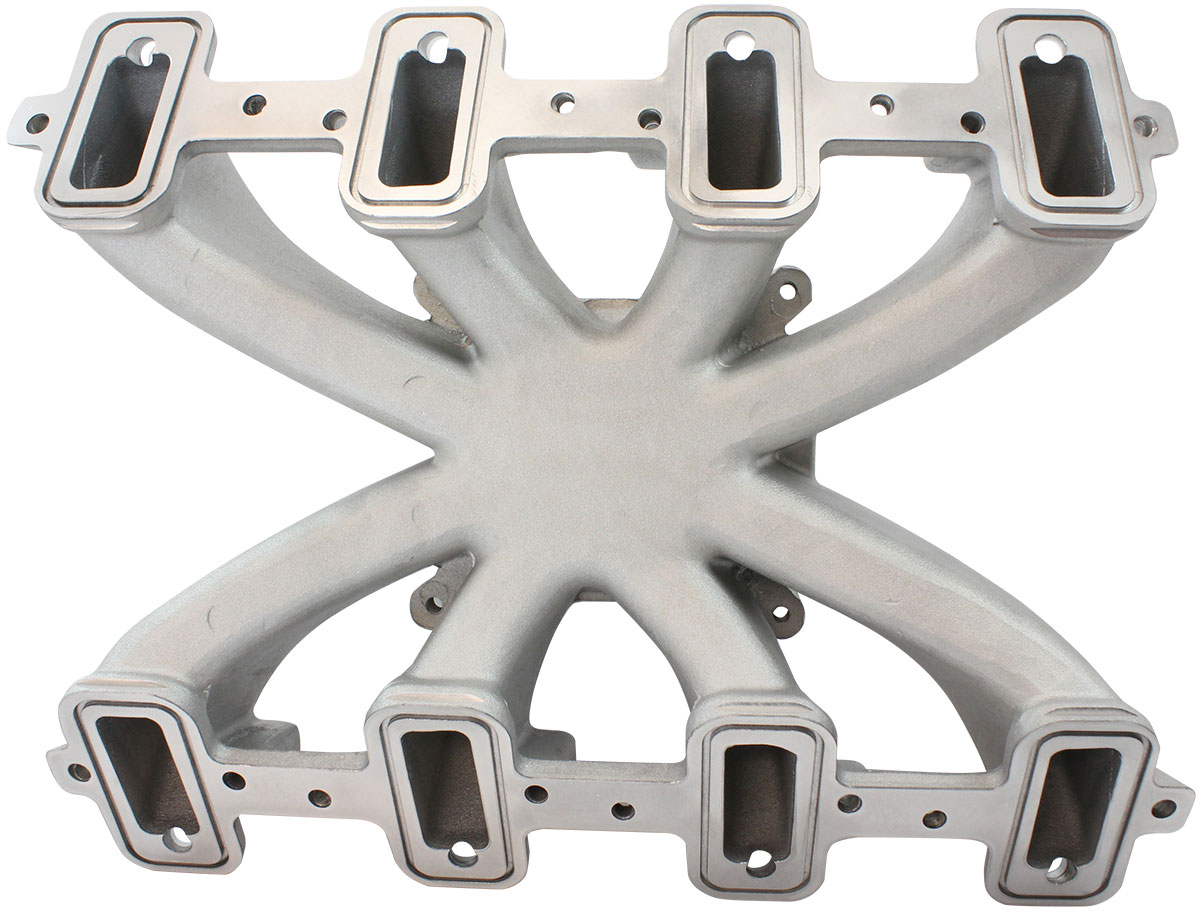

Fits GM LS1/LS2 Cathedral Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-5000 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4"" length (48.65mm) fuel injectors (Sold Separately).
Fits GM LS1/LS2 Engines.
Single Plane Configuration.
Low Rise Intake Manifold.
RPM operating range - 2500 to 7000.
Natural Cast Finish.
Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 122mm (Ensure to Check Bonnet Clearance)
- Port Size: 0.95"" x 2.45""
- Intake manifold gasket O-Ring (AF6233-5002).
- 5/16-18"" carburettor studs (x4)
- 3/8"" NPT port (x1)
- 6 x 5/16-18"" Mounting Holes.
Intake Manifold Includes
- 8 x Intake Manifold O-Ring Gaskets (AF6233-5002)
- 4 x M6 x 1.00mm Hex Screws (80mm UHL)
- 6 x M6 x 1.00mm (50m UHL)
- 10 x M6 Flat Washers
- 1 x 3/8"" NPT Steel Port Plug

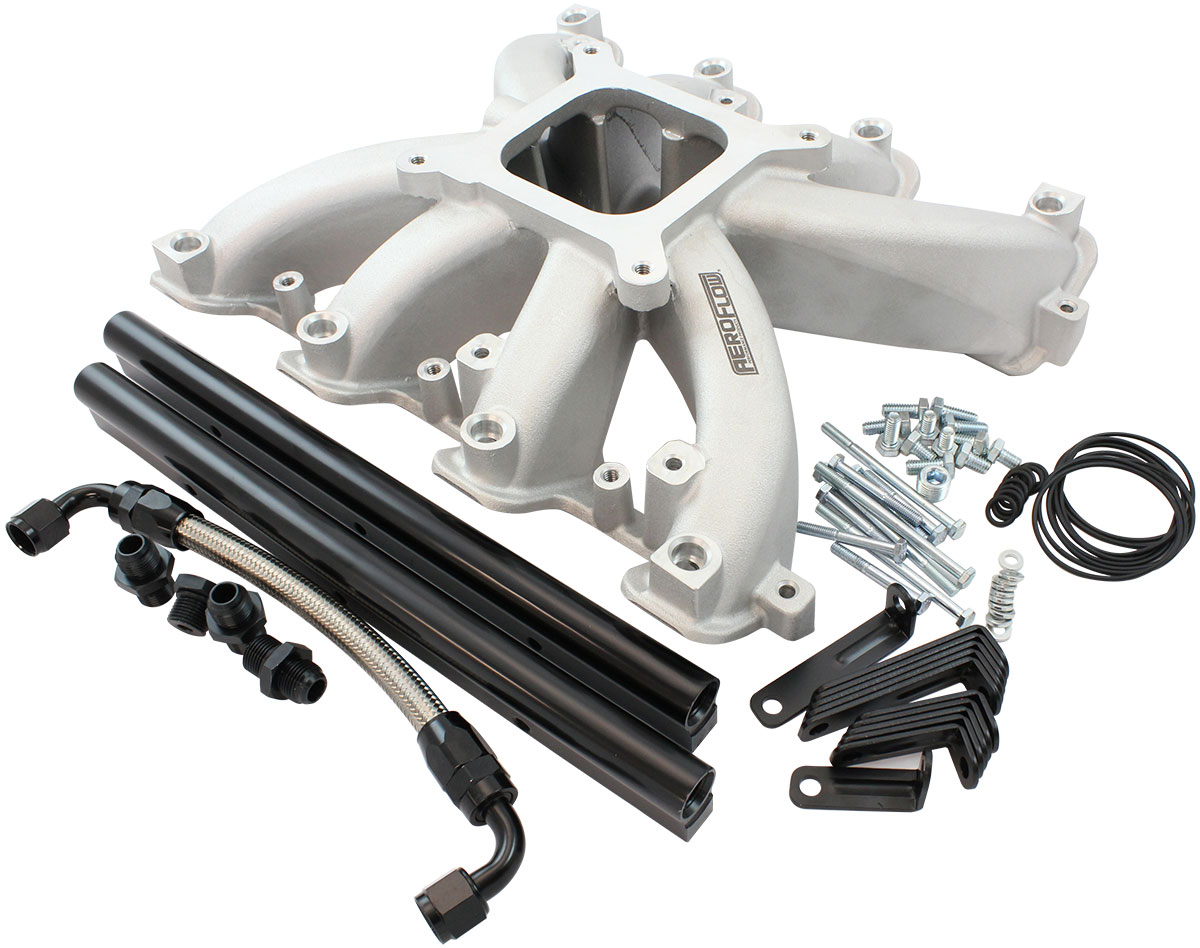

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 6 x long mounting brackets
- 6 x short mounting brackets
- 6 x 5/16-18"" hex screws (18.5mm UHL)
- 6 x 5/16-18"" hex screws (12mm UHL)
- 4 x M6 nuts
- 8 x 14mm Fuel Injector O-Rings
Fits GM LS1/LS2 Cathedral Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-5000 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
Requires the use of either 14mm short (33.60mm) fuel injectors or 3/4"" length (48.65mm) fuel injectors (Sold Separately)."
- Motortyp: LS
