Insug
Aeroflow : AF6050-5001
Artikelnr: AFW6050-5001

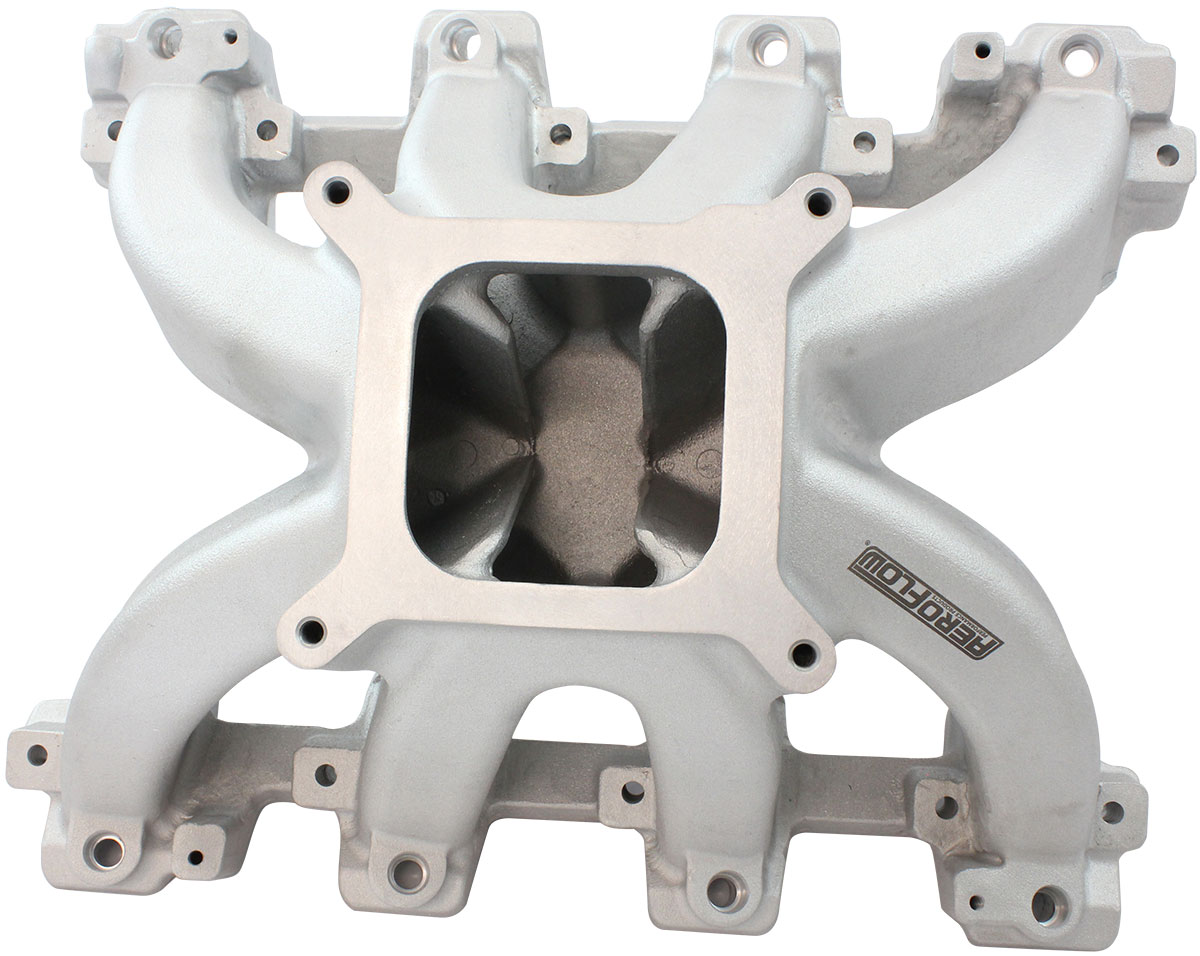

Fits GM LS1/LS2 Cathedral Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
Fits GM LS1/LS2 Engines.
Single Plane Configuration.
High Rise Intake Manifold.
RPM operating range - 2500 to 7000.
Natural Cast Finish.
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
Manifold Specifications
- Square bore carburettor pad (4150 Flange)
- Overall height (Carb pad to bottom of manifold) is 172mm (Ensure to Check Bonnet Clearance)

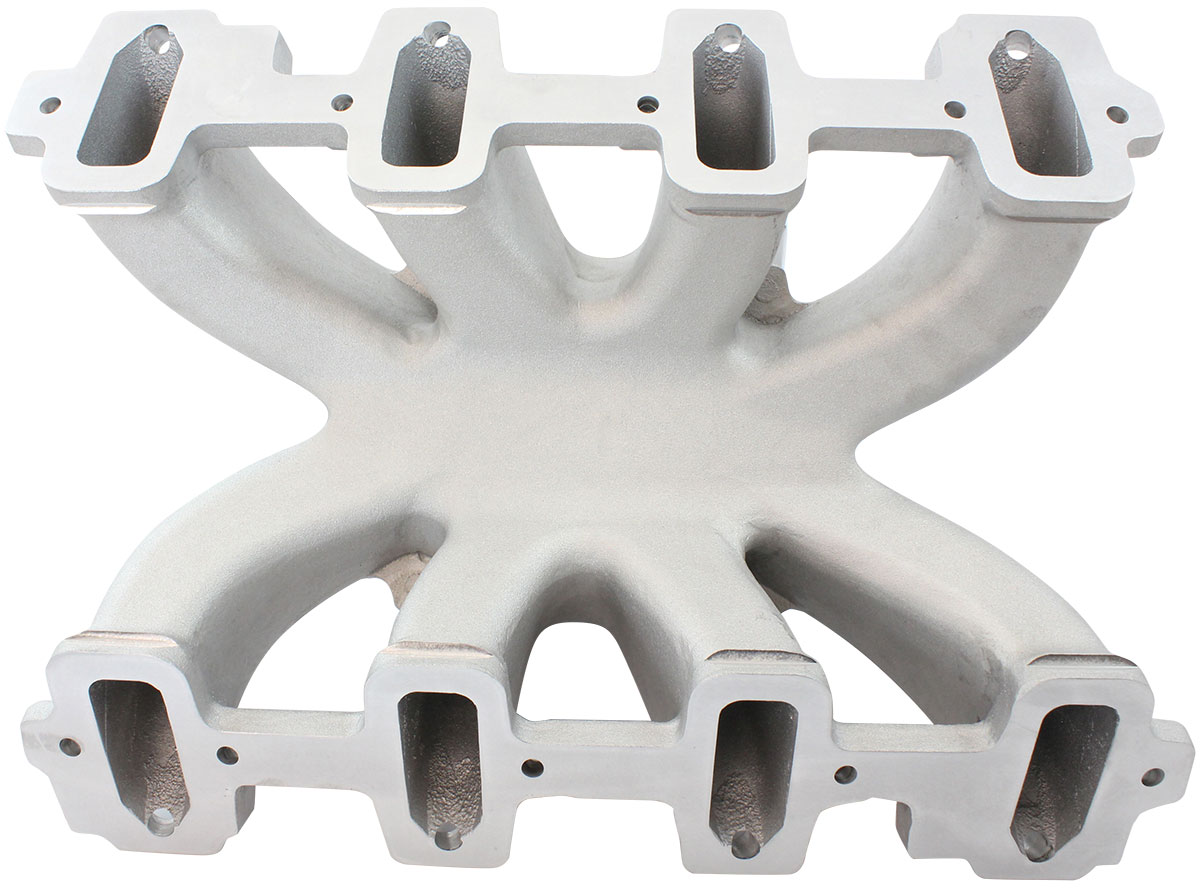

- Port Size: 1.08" x 2.45"
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- 5/16-18" carburettor studs (x4)
- 4 x M6 x 1.00mm Mounting Holes for fuel rails.
Intake Manifold Includes
- 10 x M6 x 1.00mm Hex Screws (50mm UHL)
- 10 x M6 Flat Washers

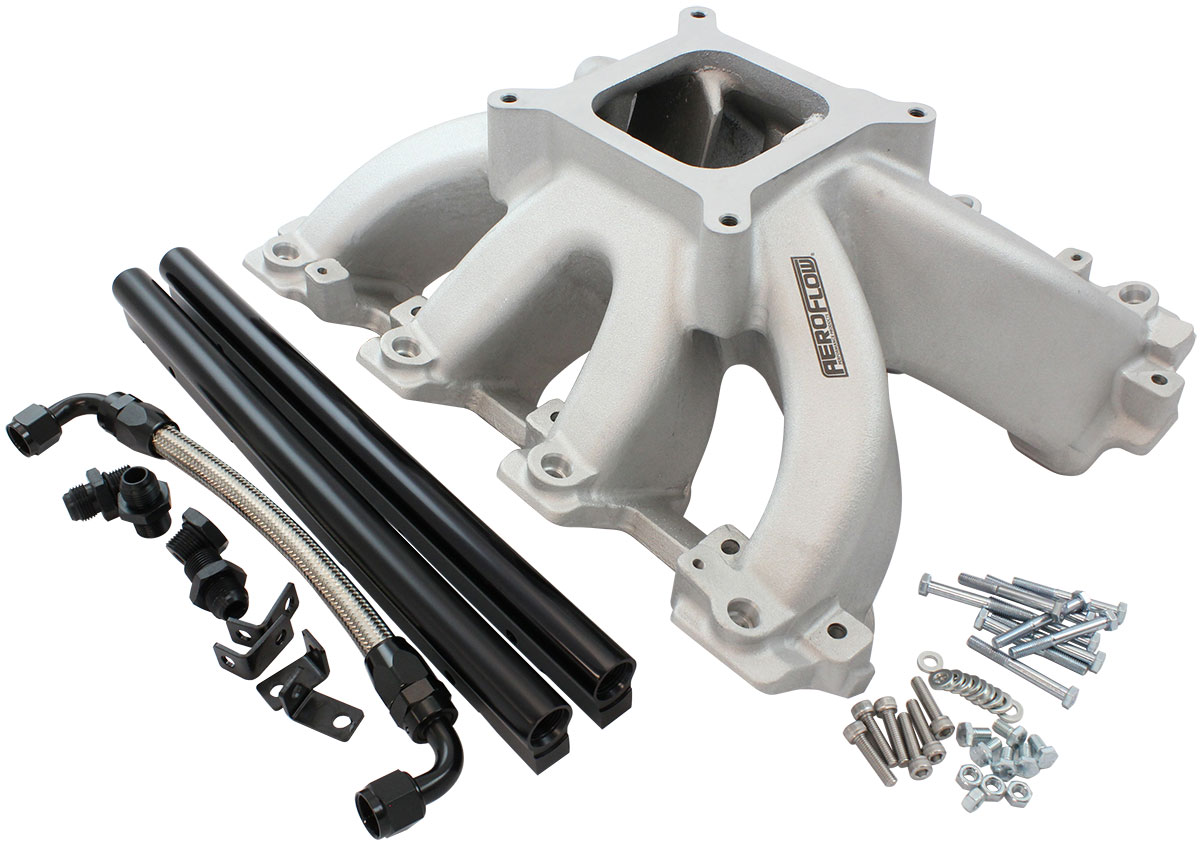

Fuel Rail Kit includes
- 2 x Two Fuel Rails (-8ORB)
- 1 x -8AN cross over 100 series braided line and two 90 degree non full flow taper fittings
- 3 x -8an to -8ORB fittings
- 1 x -8ORB hex port plug
- 4 x mounting brackets
- 6 x M6 x 1.00mm socket cap screws (25mm UHL)
- 6 x M6 x 1.00mm hex screws (12mm UHL)
- 4 x M6 nuts
Fits GM LS1/LS2 Cathedral Port Engines.
EFI Applications.
This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
Requires the use of 14mm short (33.60mm) fuel injectors (Sold Separately).
- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
- Motortyp: LS
