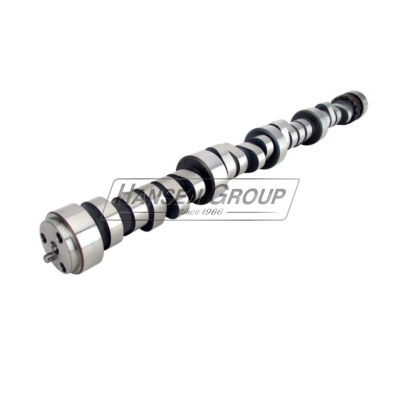

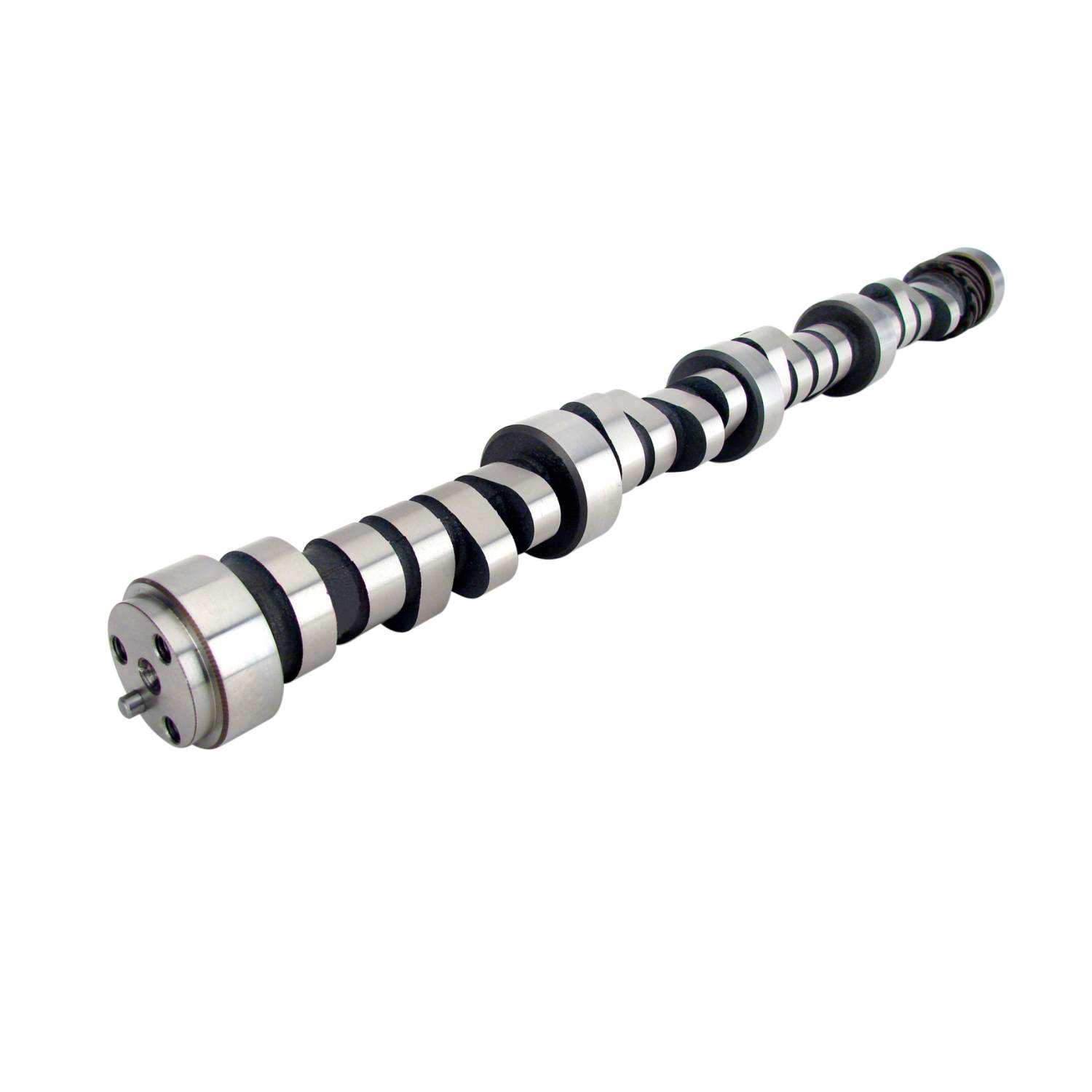

Kamaxel
CompCams : 01-419-8
Artikelnr: COM01-419-8
- Advertised Exhaust Duration: 288 DD
- Advertised Intake Duration: 282 DD
- Amazon ASIN: N/A
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 2,000-6,000 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam and Lifter Kit Upgrade: CL01-419-8
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Austempered Ductile Iron
- Camshaft Series: Xtreme Energy Computer Controlled
- Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
- Exhaust Duration at .050 inch Lift: 236 DD
- Exhaust Valve Lift: 0.52 IN
- Grind Number: XR282HR-14
- Intake Duration at .050 Inch Lift: 230 DD
- Intake Valve Lift: 0.51 IN
- K-Kit Upgrade: K01-419-8
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 114 DD
- SK-Kit Upgrade: SK01-419-8
- Title: XE Computer Controlled 230/236 for Chevrolet Big Block GEN IV
- Usage: Street/Performance
- Valve Springs Required: Yes
- Fabrikat: Chevrolet
- Motortyp: Big Block
- Motorfamilj: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
- Typ: Hydraulisk
- Typ: Rullyftare
- Varvtal Från: 2000 RPM Från
- Varvtal Till: 6000 RPM Till
- Duration insug: 282 Duration insug
- Lyft insug: 510 Lyft insug
- Lyft avgas: 520 Lyft avgas
