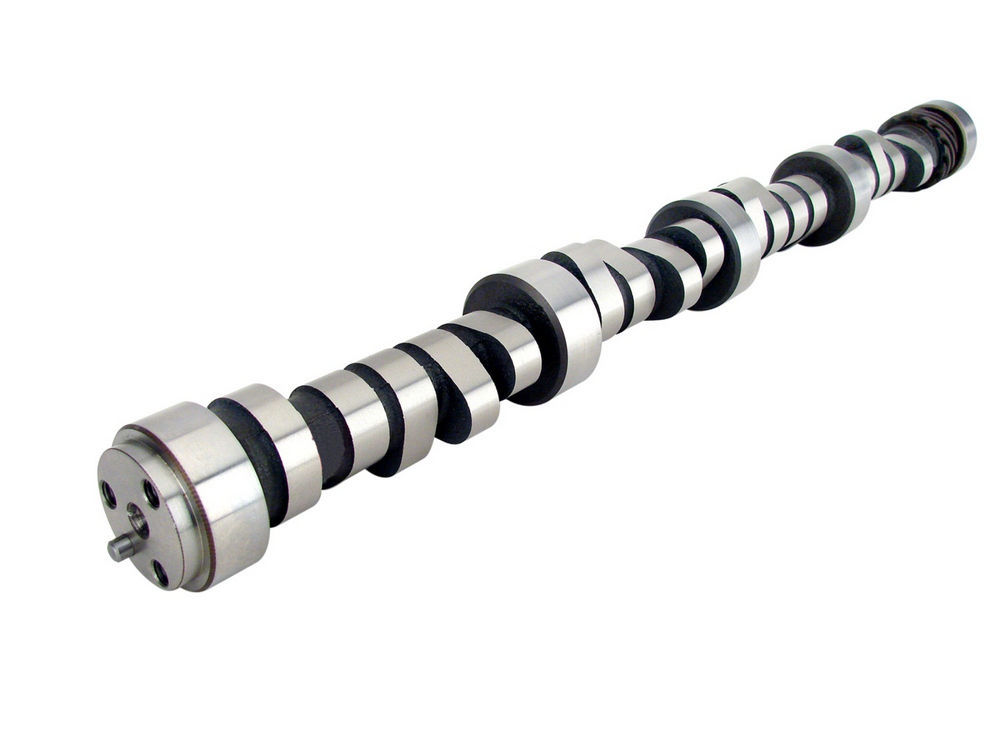

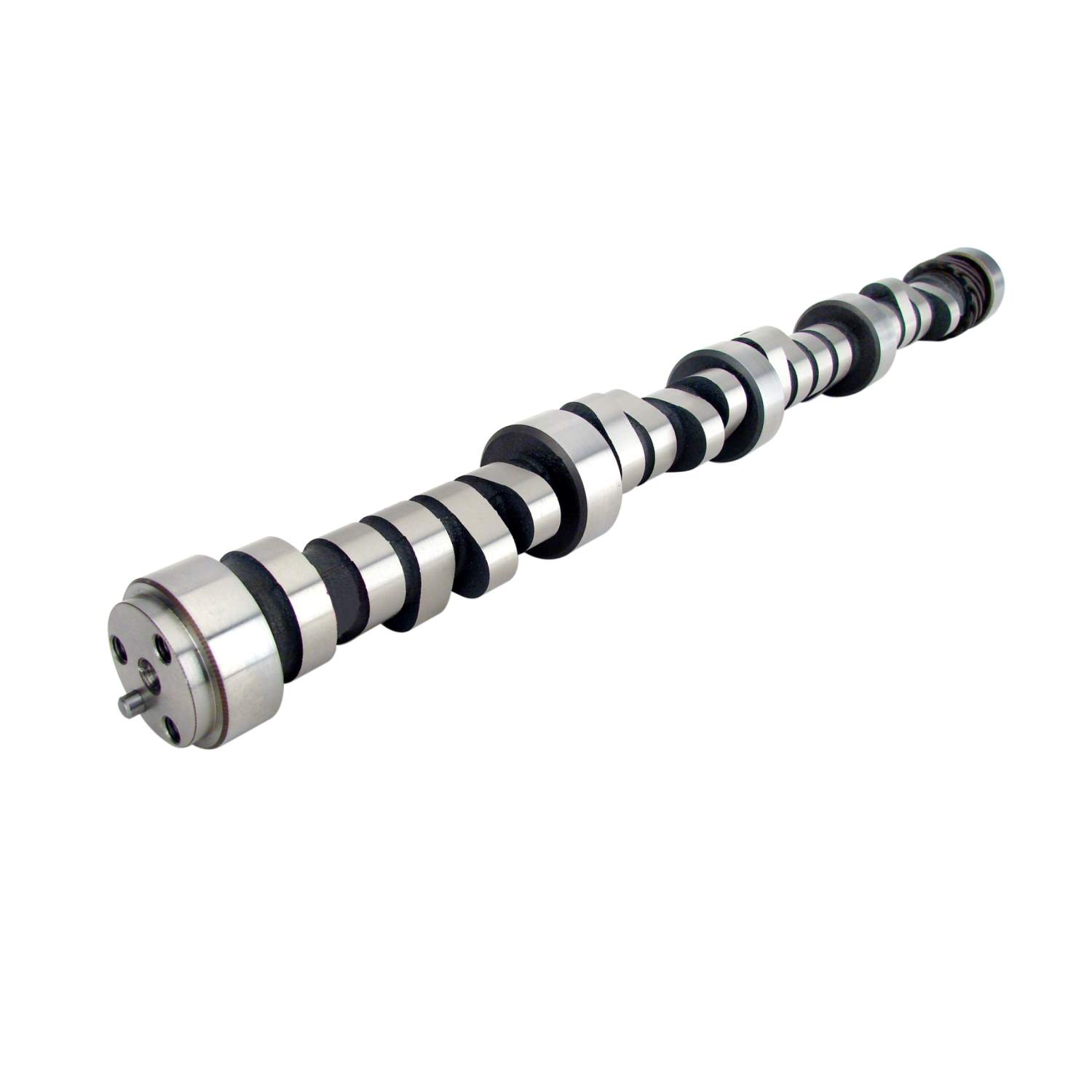

Kamaxel
CompCams : 01-775-8
Artikelnr: COM01-775-8
- Advertised Exhaust Duration: 279 DD
- Advertised Intake Duration: 271 DD
- Amazon ASIN: N/A
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,800-6,000 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam and Lifter Kit Upgrade: CL01-775-8
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Austempered Ductile Iron
- Camshaft Series: Xtreme Energy Computer Controlled
- Engine Family: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
- Exhaust Duration at .050 inch Lift: 232 DD
- Exhaust Valve Lift: 0.601 IN
- Grind Number: XR271HR-12
- Intake Duration at .050 Inch Lift: 224 DD
- Intake Valve Lift: 0.591 IN
- K-Kit Upgrade: K01-775-8
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 112 DD
- SK-Kit Upgrade: SK01-775-8
- Title: XE Computer Controlled 224/232 Hydraulic Roller Cam Chevrolet Big Block GEN VI
- Usage: Street/Performance
- Valve Springs Required: Yes
- CBVI XR271HR-12: Kamprofil
- Fabrikat: Chevrolet
- Motortyp: Big Block
- Motorfamilj: Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)
- Typ: Hydraulisk
- Typ: Rullyftare
- Varvtal Från: 1800 RPM Från
- Varvtal Till: 6000 RPM Till
- Duration insug: 271 Duration insug
- Lyft insug: 591 Lyft insug
- Lyft avgas: 601 Lyft avgas
