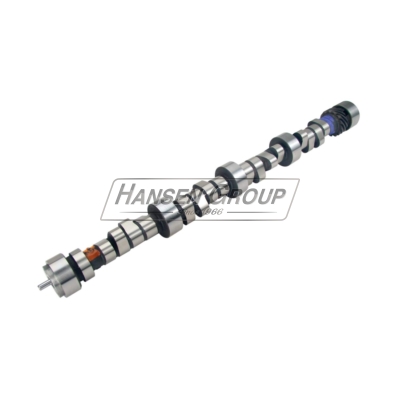

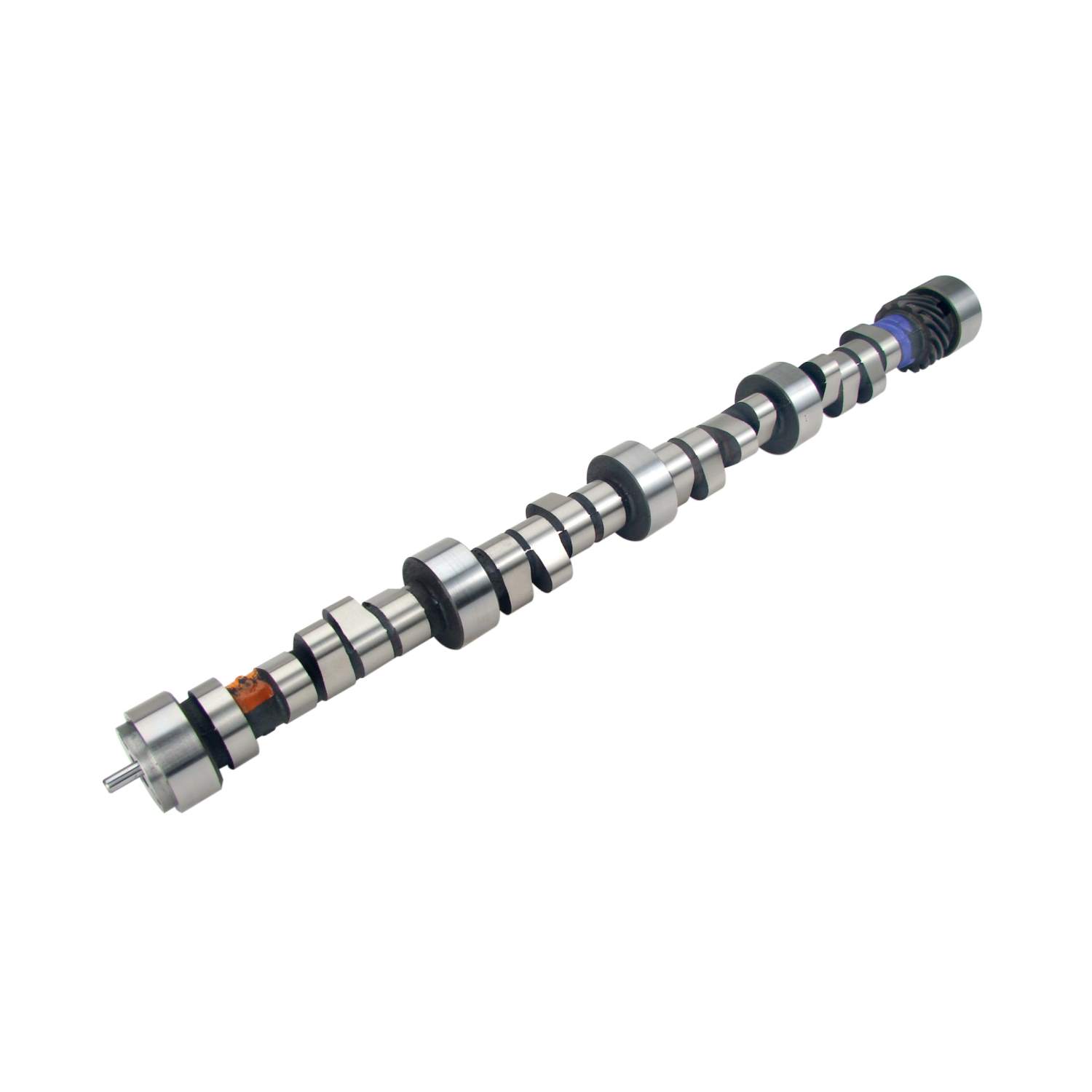

Kamaxel
CompCams : 07-503-8
Artikelnr: COM07-503-8
- Advertised Exhaust Duration: 281 DD
- Advertised Intake Duration: 276 DD
- Amazon ASIN: B000VTYRKY
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,800-5,800 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Austempered Ductile Iron
- Camshaft Series: Xtreme Energy
- Engine Family: GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997)
- Exhaust Duration at .050 inch Lift: 230 DD
- Exhaust Valve Lift: 0.51 IN
- Grind Number: 276HR-12
- Intake Duration at .050 Inch Lift: 224 DD
- Intake Valve Lift: 0.503 IN
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 112 DD
- Title: Xtreme Energy 224/230 Hydraulic Roller Cam for GM LT1/LT4
- Usage: Street/Performance
- Valve Springs Required: Yes
- Fabrikat: Chevrolet
- Motortyp: Small Block
- Motorfamilj: GM LT1 and LT4 350 c.i. 8 Cylinder (1995-1997)
- Typ: Hydraulisk
- Typ: Rullyftare
- Varvtal Från: 1800 RPM Från
- Varvtal Till: 5800 RPM Till
- Duration insug: 276 Duration insug
- Lyft insug: 503 Lyft insug
- Lyft avgas: 510 Lyft avgas
