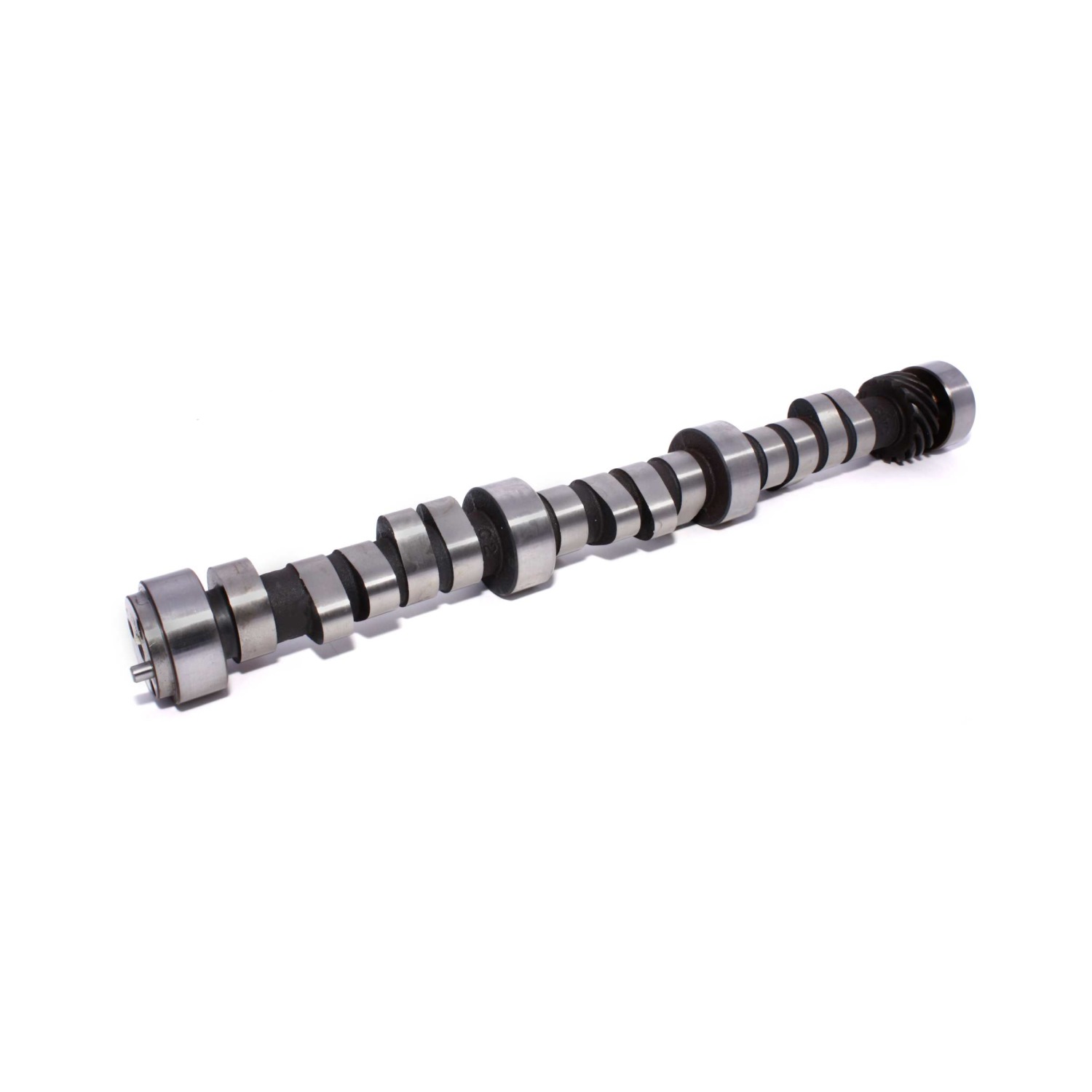

Kamaxel
CompCams : 09-412-8
Artikelnr: COM09-412-8
- Advertised Exhaust Duration: 266 DD
- Advertised Intake Duration: 260 DD
- Amazon ASIN: B000VU20HU
- Assembly Lubricant Included: No
- Basic Operating RPM Range: 1,200-4,500 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam and Lifter Kit Upgrade: CL09-412-8
- Cam Type: Hydraulic Roller
- Camshaft Gear Attachment: 3-Bolt
- Camshaft Material: Austempered Ductile Iron
- Camshaft Series: Magnum Computer Controlled
- Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
- Exhaust Duration at .050 inch Lift: 210 DD
- Exhaust Valve Lift: 0.5 IN
- Grind Number: 260AHR
- Intake Duration at .050 Inch Lift: 206 DD
- Intake Valve Lift: 0.5 IN
- K-Kit Upgrade: K09-412-8
- Lifter Type: Hydraulic Roller
- Lifters Included: No
- Lobe Separation: 112 DD
- SK-Kit Upgrade: SK09-412-8
- Title: Magnum Computer Controlled 206/210 Hydraulic Roller Cam for Chevrolet 262/4.3L
- Usage: Street/Strip
- Valve Springs Required: Yes
- Fabrikat: Chevrolet
- Motortyp: V6
- Motorfamilj: Chevrolet 4.3L 262 c.i. 90 Degree 6 Cylinder (1987+) Non-Balance Shaft
- Typ: Hydraulisk
- Typ: Rullyftare
- Varvtal Från: 1200 RPM Från
- Varvtal Till: 4500 RPM Till
- Duration insug: 260 Duration insug
- Lyft insug: 500 Lyft insug
- Lyft avgas: 500 Lyft avgas
