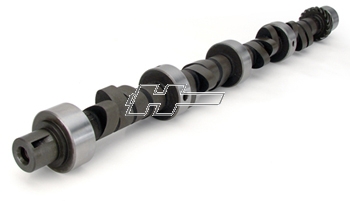

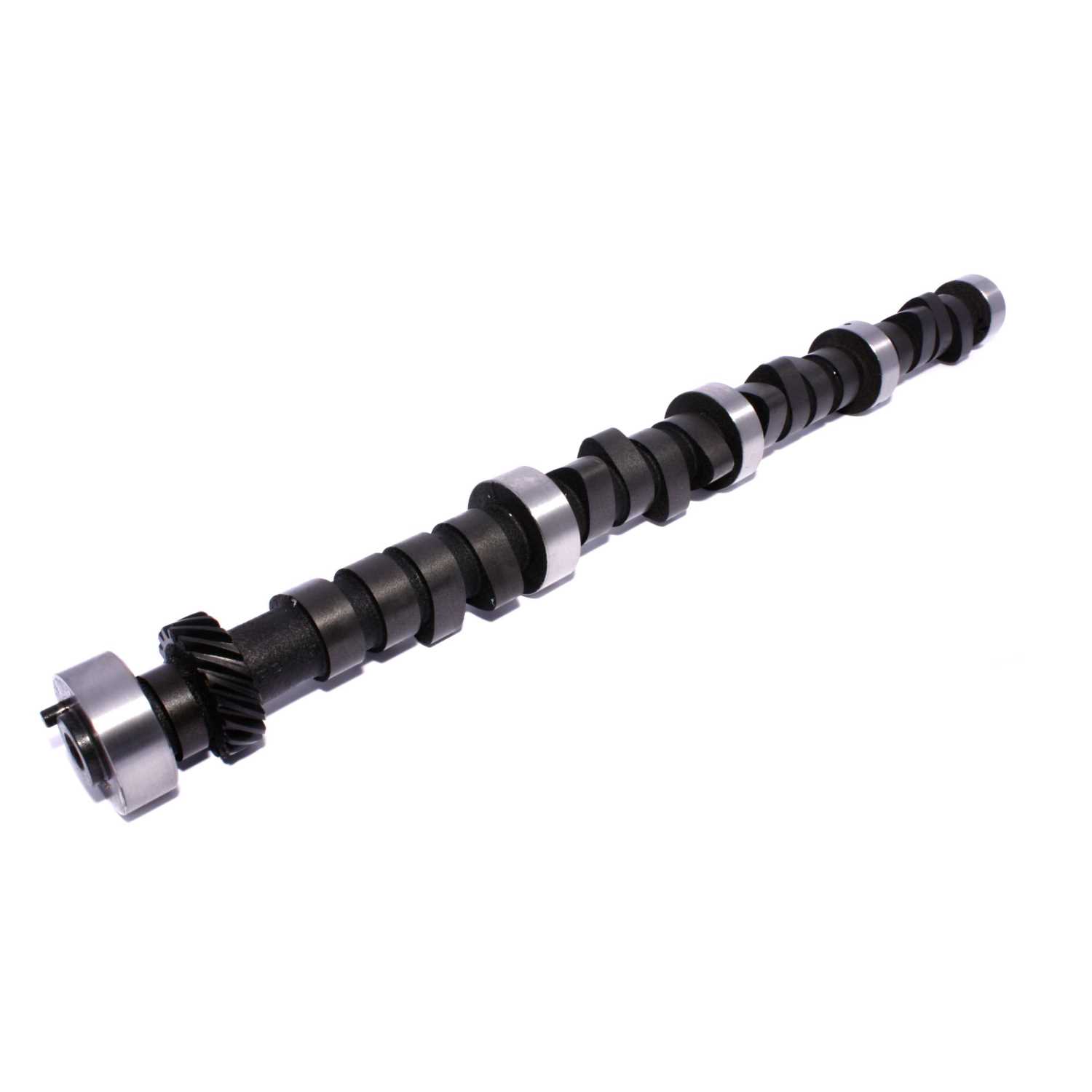

Kamaxel
CompCams : 21-222-4
Artikelnr: COM21-222-4
Duration In 262 / Ut 270
Duration 050" Lyft: In 218 Ut 224
Ventillyft In 0.462 Ut 0.470
Lobecenterlinje 110
- Advertised Exhaust Duration: 270 DD
- Advertised Intake Duration: 262 DD
- Amazon ASIN: B000N5RI3O
- Assembly Lubricant Included: Yes
- Basic Operating RPM Range: 1,300-5,600 R3
- C.A.R.B. E.O. Number: N/A
- C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
- C.A.R.B. Exempt for On-Road Vehicles?: No
- C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
- C.A.R.B. Exemption Reason: N/A
- Cam and Lifter Kit Upgrade: CL21-222-4
- Cam Type: Hydraulic Flat Tappet
- Camshaft Gear Attachment: 1-Bolt
- Camshaft Material: Cast Iron
- Camshaft Series: Xtreme Energy
- Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
- Exhaust Duration at .050 inch Lift: 224 DD
- Exhaust Valve Lift: 0.47 IN
- Grind Number: XE262H
- Intake Duration at .050 Inch Lift: 218 DD
- Intake Valve Lift: 0.462 IN
- K-Kit Upgrade: K21-222-4
- Lifter Type: Hydraulic Flat Tappet
- Lifters Included: No
- Lobe Separation: 110 DD
- SK-Kit Upgrade: SK21-222-4
- Title: Xtreme Energy 218/224 Hydraulic Flat Cam for Chrysler 383-440
- Usage: Street/Performance
- Valve Springs Required: Yes
- Fabrikat: Chrysler
- Fabrikat: Dodge
- Fabrikat: Mopar
- Motortyp: Big Block
- Motorfamilj: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)
- Typ: Hydraulisk
- Varvtal Från: 1300 RPM Från
- Varvtal Till: 5600 RPM Till
- Duration insug: 262 Duration insug
- Lyft insug: 462 Lyft insug
- Lyft avgas: 470 Lyft avgas
