Topplock
Edelbrock : 60175
Artikelnr: EDE60175

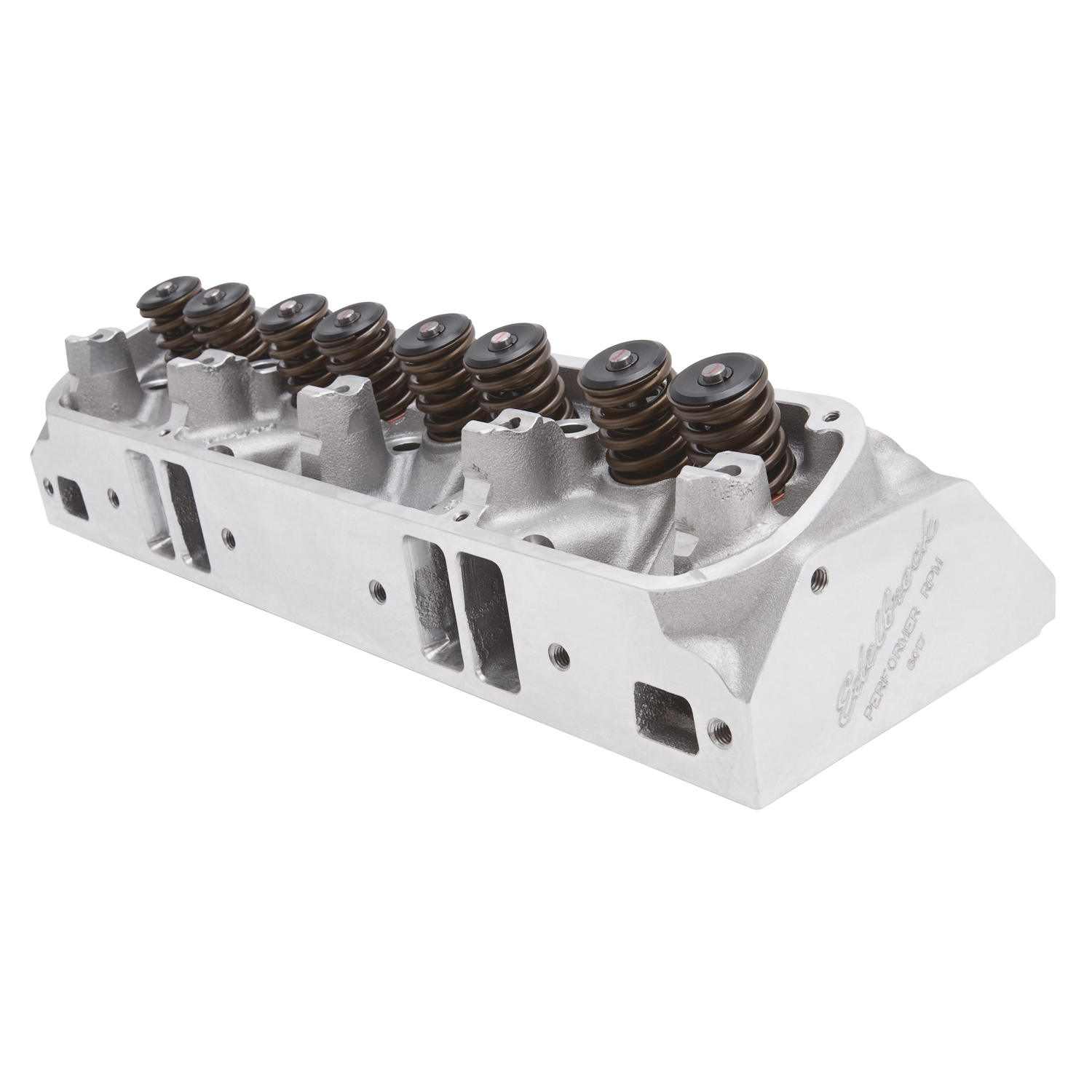

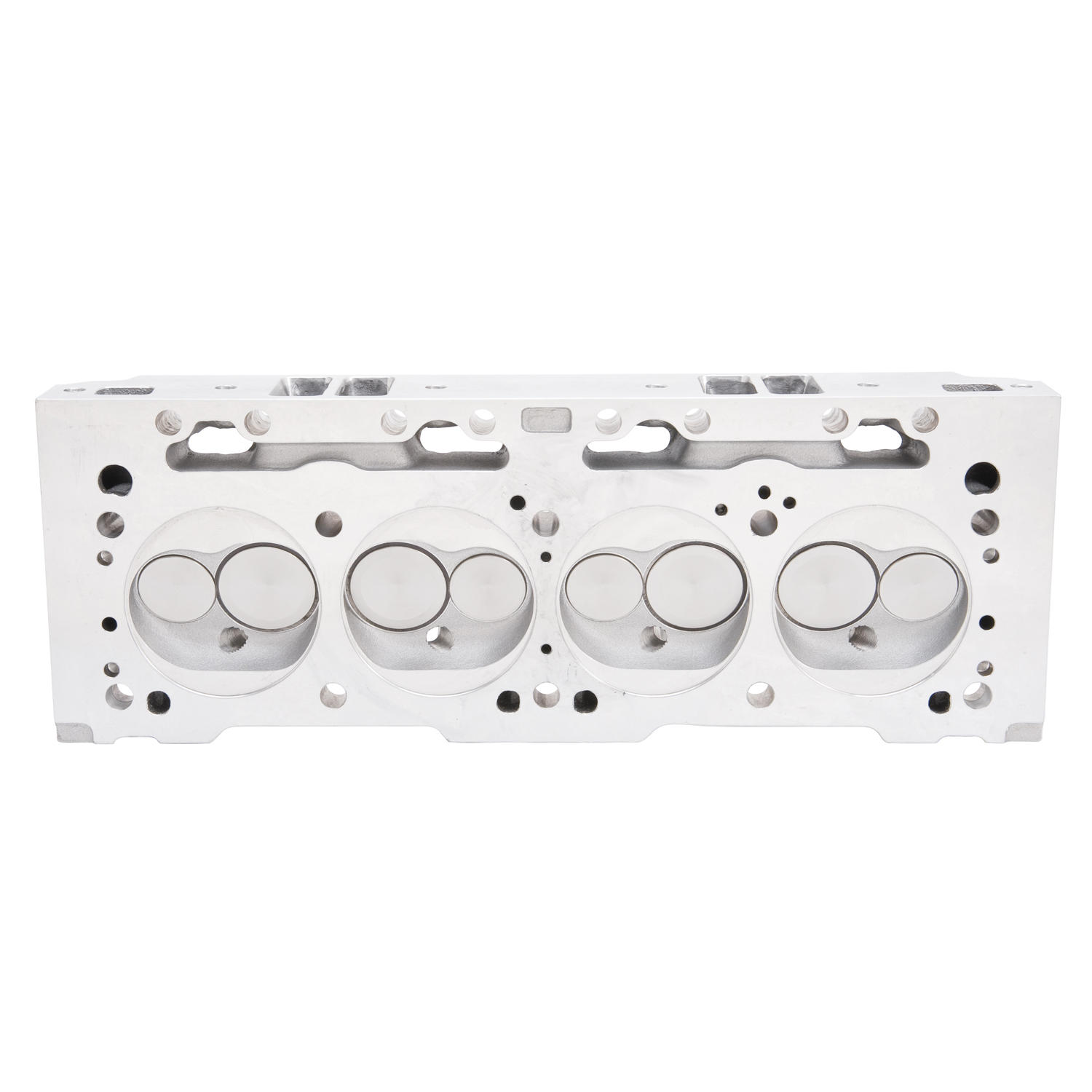

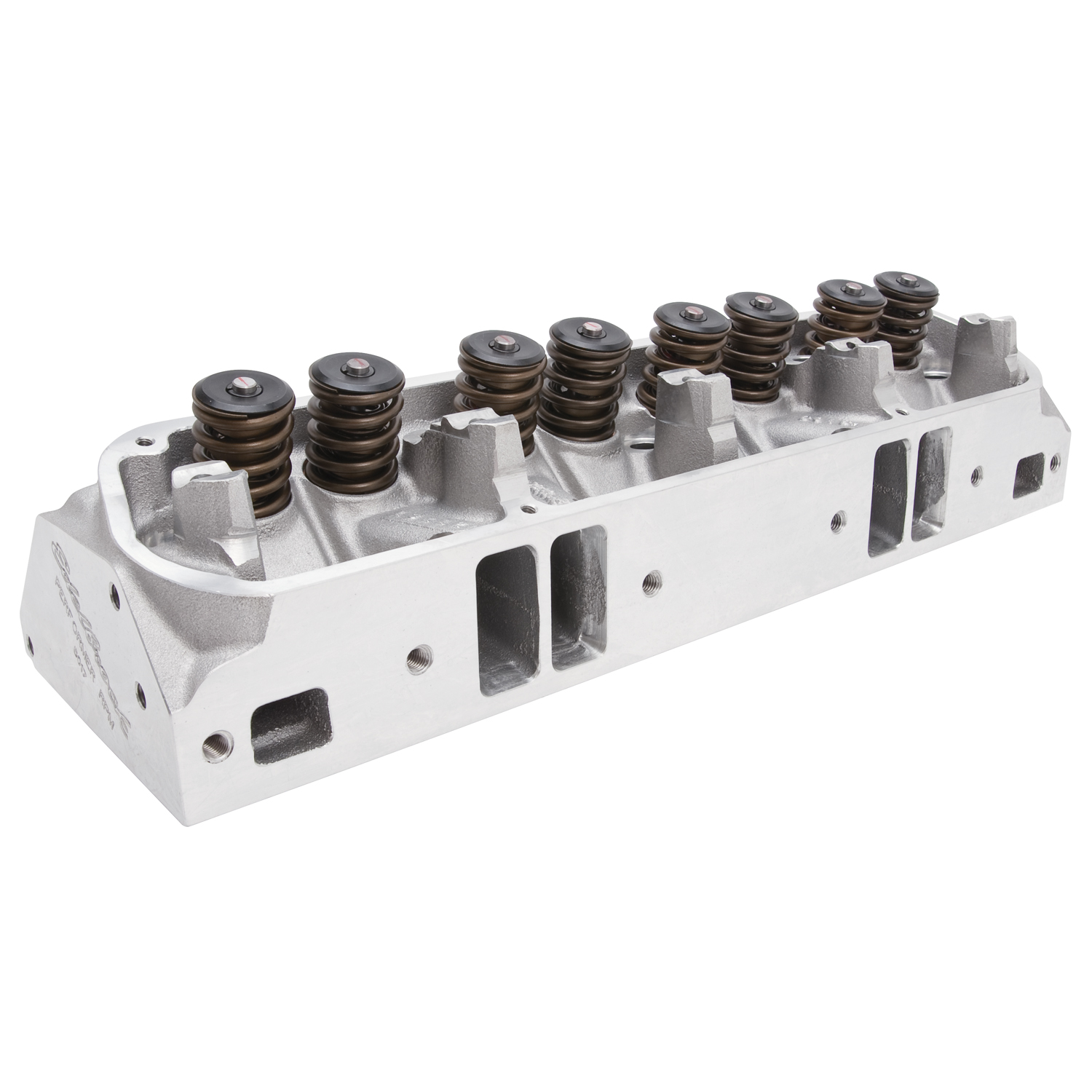

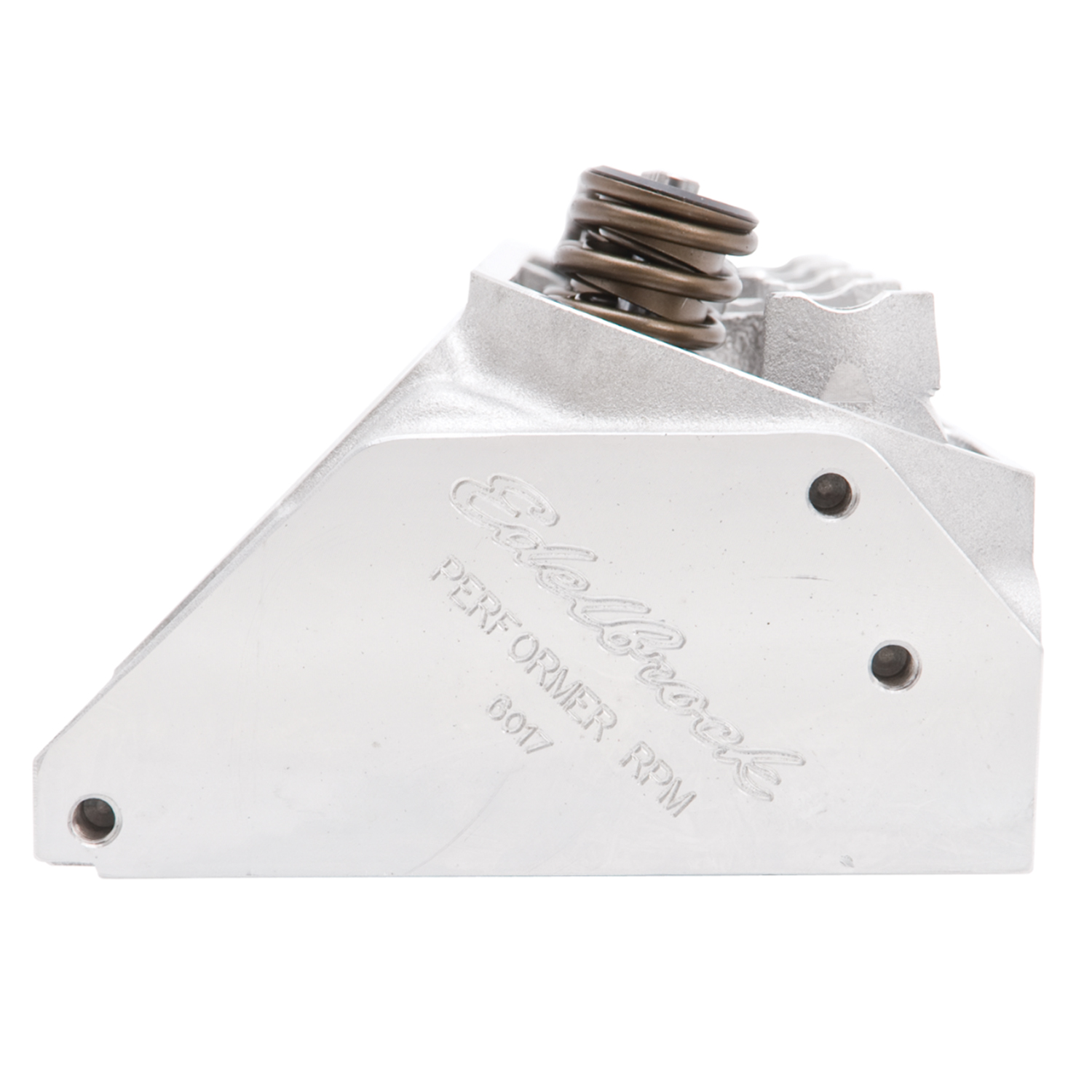

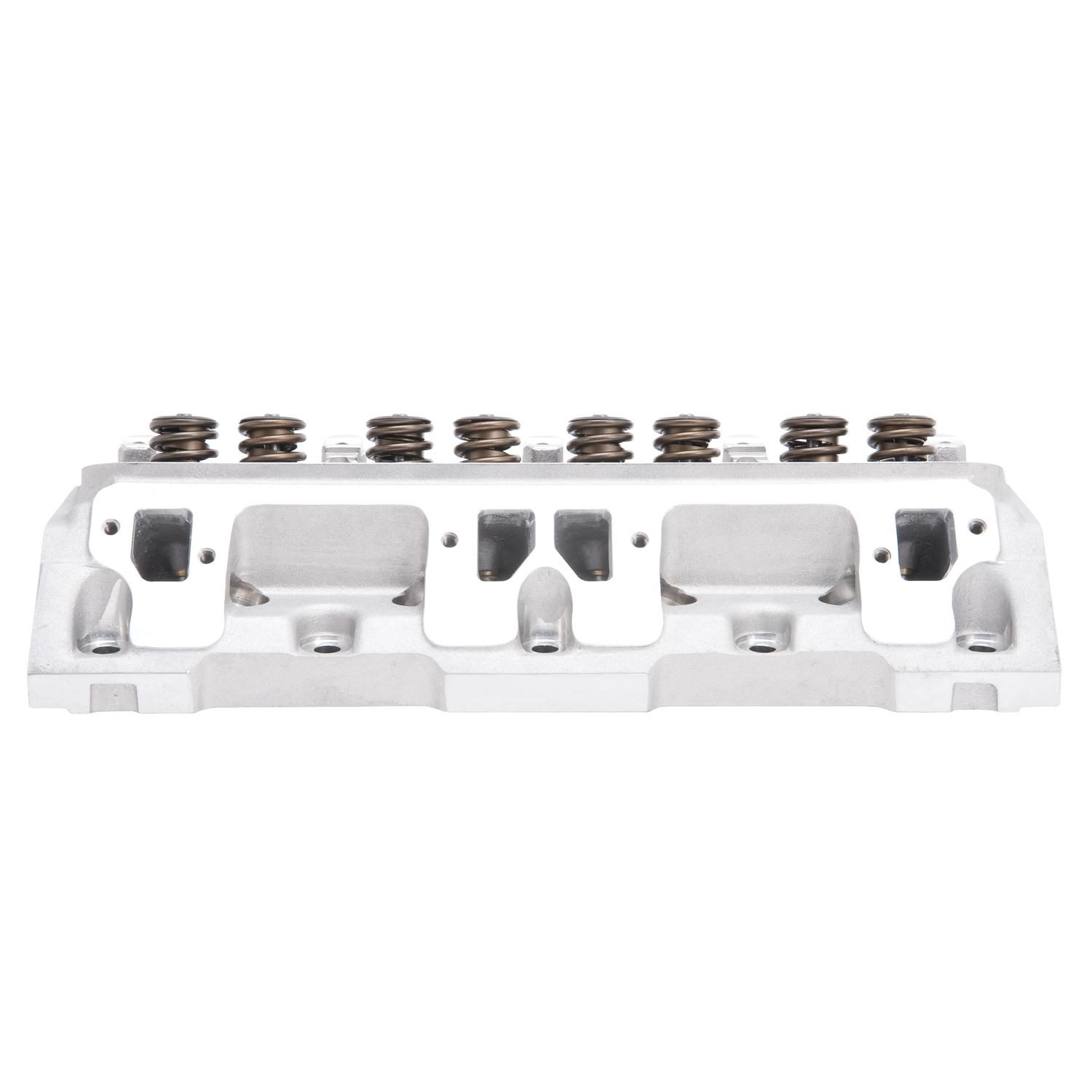

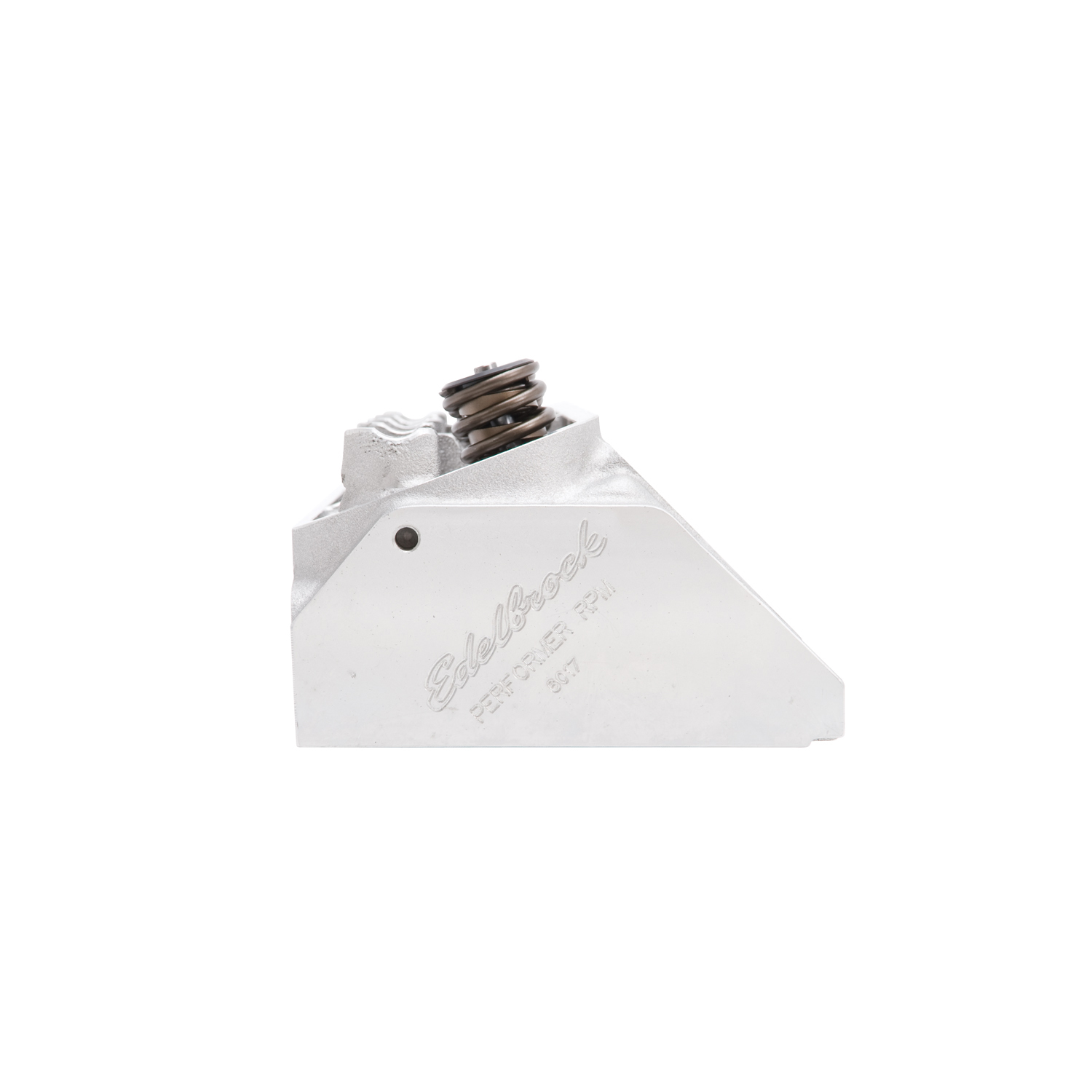

The Edelbrock #60175 Performer RPM head is designed for use with non-emission 1968-73 Chrysler 340 c.i.d. engine applications. The Edelbrock #60175 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
- Camshaft Type: Hydraulic Roller
- CNC Ported: No
- Combustion Chamber Volume: 65 CCM
- Construction Type: Complete
- Deck Thickness: 0.625 IN
- EGR Port: No
- Exhaust Port Location: Standard
- Exhaust Runner Volume: 77 CCM
- Exhaust Valve Diameter: 1.60 IN
- Family: Performer RPM
- Grade Type: Performance
- Guide Material: Manganese Bronze
- Guide Plate Material: Hardened Steel
- Guide Plates Included: No
- Head Casting Number: N/A
- Horsepower: 350-450 HJ
- Intake Runner Volume: 171 CCM
- Intake Valve Diameter: 2.02 IN
- Material: Aluminum
- Quantity: Sold Individually
- Retainer Included: Yes
- RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Rocker Arm Stud Diameter: 0.375 IN
- Seat Angle: Exhaust 45 deg/Intake 45 DD
- Seat Material: Ductile Iron
- Series: Performer RPM
- Valve Angle: 18 DD
- Valve Included: Yes
- Valve Spring Diameter: 1.46 IN
- Valve Spring Maximum Lift: 0.575 IN
- Valve Springs Included: Yes
- Valve Stem Diameter: 0.3438 IN
Edelbrock topplock är tillverkade i USA och erbjuder det bästa inom kvalitet och prestanda. Genom att använda högeffektiva portdesigner och toppmoderna former på förbränningsrum erbjuder Edelbrocks topplock förbättrad prestanda i hela varvtalsregistret för bra gasrespons och ökad effekt på höga varvtal. Edelbrock har även kamaxlar anpassade till dessa toppar.
- Fabrikat: Chrysler
- Motortyp: Small Block
