Topplock
Edelbrock : 7764
Artikelnr: EDE7764

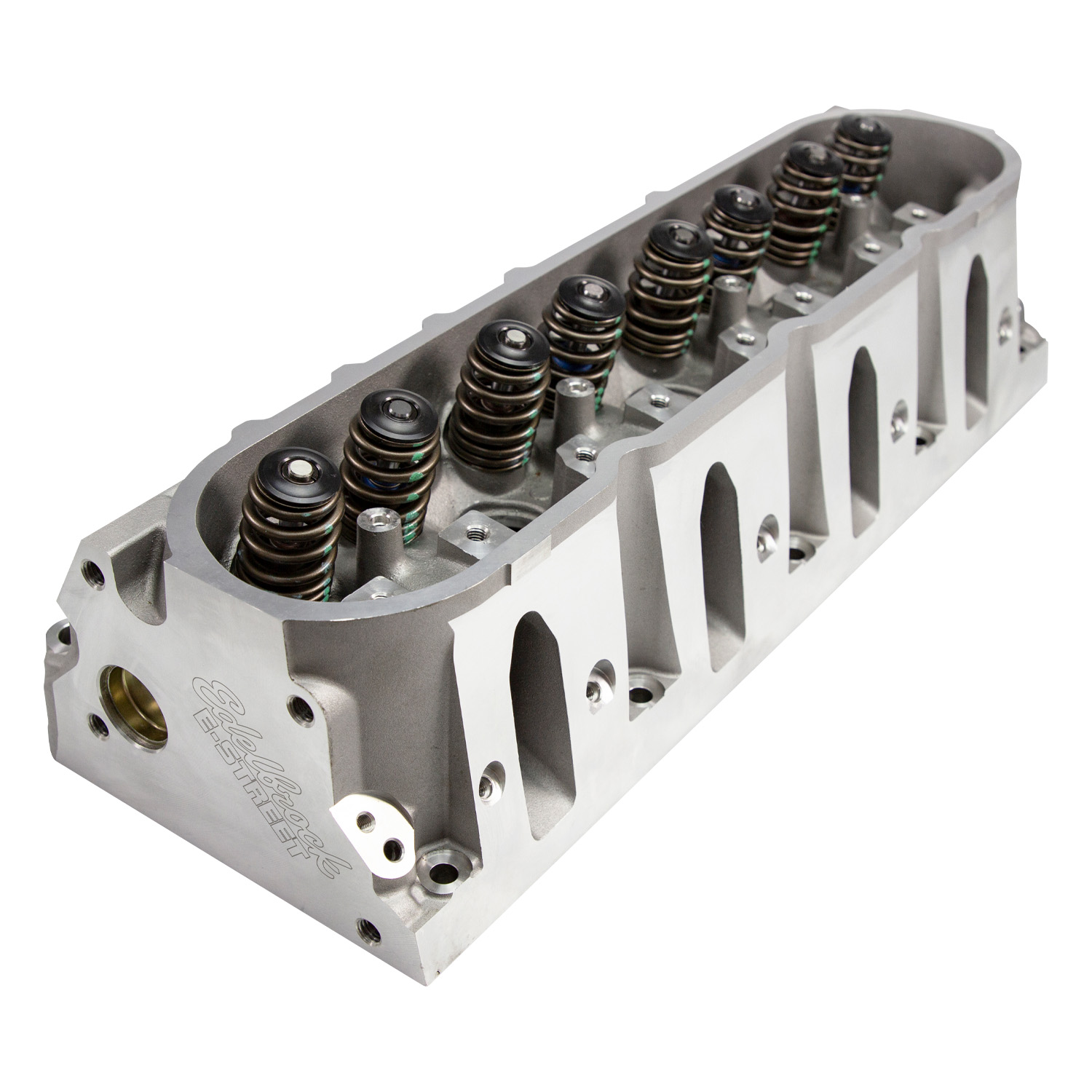

The Edelbrock E-Street LS Cylinder Heads are premium quality, bolt-on-ready cylinder heads for any highperformance
or stock GM LS engine build. Sold in pairs and assembled with premium COMP Cams valve train
components, these LS heads are engineered with the same architecture as the factory head, and all stock
components will fit without issue. A Beehive valve spring option allows up to .570-lift camshafts while a dual spring
choice is good up to .660 of lift, ideal for many mild to hot camshaft grinds. A unique dual-spark-plug pocket design
allows you to use either a factory-style tapered seat or a gasketed seat spark plug, which are available in wider heat
ranges for maximum tunability.
- Camshaft Type: Hydraulic Roller
- CNC Ported: No
- Combustion Chamber Volume: 64 CCM
- Construction Type: Complete
- Exhaust Runner Volume: 75 CCM
- Exhaust Valve Diameter: 1.55 IN
- Family: E-Street
- Guide Material: Manganese Bronze
- Guide Plates Included: Yes
- Intake Port Shape: Cathedral
- Intake Runner Volume: 210
- Intake Valve Diameter: 2 IN
- Material: Aluminum
- Quantity: Set of 2
- RGL: WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
- Valve Angle: 15 DD
- Valve Spring Diameter: 1.29 IN
- Valve Spring Maximum Lift: 0.66 IN
- Valve Springs Included: Yes
Edelbrock topplock är tillverkade i USA och erbjuder det bästa inom kvalitet och prestanda. Genom att använda högeffektiva portdesigner och toppmoderna former på förbränningsrum erbjuder Edelbrocks topplock förbättrad prestanda i hela varvtalsregistret för bra gasrespons och ökad effekt på höga varvtal. Edelbrock har även kamaxlar anpassade till dessa toppar.
- Fabrikat: Chevrolet
- Motortyp: LS
